Diamond Negative Turning Blank with Hole, r 1/32 in
Diamond Negative Turning Blank with Hole, r 1/32 in
SKU:TUR-641509
Versatile Diamond Negative Turning Blank with precise dimensional specs and custom grade options. Ideal for turning applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative Turning Blank with Hole, r 1/32 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative Turning Blank with Hole, r 1/32 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

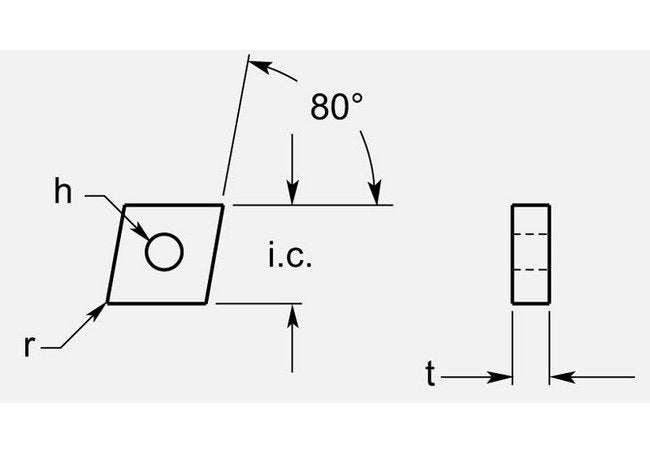

The Diamond Negative Turning Blank with Hole, featuring a precise Thickness of 0.260-0.268 in, Inscribed Circle of 0.747-0.753 in, and an 80° Angle, is a versatile solution for turning applications. The 1/32 in Radius with a Hole of 0.309-0.315 in ensures accuracy and efficiency. Custom grade availability offers tailored options to meet specific requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.309 / 0.315 in
Dimensional Specification Inscribed Circle Ic
0.747/0.753 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.260 / 0.268 in
Grade Availability Grade Availability
Available on Request
