Diamond Negative Turning Blank with Hole, Thickness 0.135-0.143 in
Diamond Negative Turning Blank with Hole, Thickness 0.135-0.143 in
SKU:TUR-990b65
High-precision Diamond Negative Turning Blank with versatile thickness and precise dimensions for superior machining performance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Diamond Negative Turning Blank with Hole, Thickness 0.135-0.143 in
$39.99
Quantity: 1
Claim Your Seller Account
Diamond Negative Turning Blank with Hole, Thickness 0.135-0.143 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

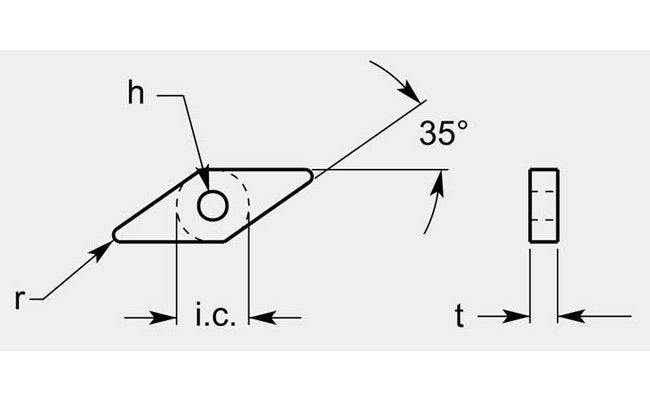

The Diamond Negative Turning Blank with Hole boasts precision and versatility with a thickness ranging from 0.135 to 0.143 inches, an Inscribed Circle of 0.389 to 0.395 inches, a precise Radius of 1/64 inch, and an Angle of 35 degrees. This turning blank is ideal for high-precision machining applications, providing exceptional performance and durability. Grade availability can be customized based on requirements, ensuring it meets specific project needs.
Product Specifications
Dimensional Specification Angle A
35 º
Dimensional Specification Hole
0.147 / 0.153 in
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Radius R
1/64 in
Dimensional Specification Thickness T
0.135 / 0.143 in
Grade Availability Grade Availability
Available on Request
