Diamond Negative Turning Blank with Hole, Thickness 0.230 / 0.236 in
Diamond Negative Turning Blank with Hole, Thickness 0.230 / 0.236 in
SKU:TUR-202733
Precision Diamond Negative Turning Blank with Hole, Thickness 0.230 / 0.236 in - Customizable Grade
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative Turning Blank with Hole, Thickness 0.230 / 0.236 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative Turning Blank with Hole, Thickness 0.230 / 0.236 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

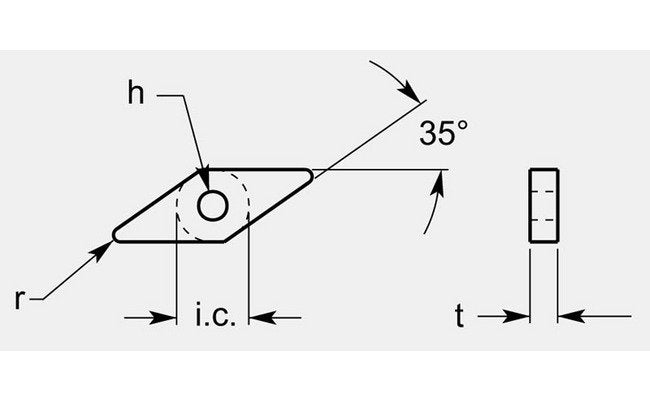

The Diamond Negative Turning Blank with Hole offers precision and durability for turning projects. With a thickness of 0.230 / 0.236 inches, an Inscribed Circle of 0.520/0.525 inches, and a small radius of 1/64 inch, this blank is designed for accuracy. The angled hole measuring 0.200 / 0.206 inches adds versatility. Grade availability can be customized upon request, ensuring it meets specific project needs.
Product Specifications
Dimensional Specification Angle A
35 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.520/0.525 in
Dimensional Specification Radius R
1/64 in
Dimensional Specification Thickness T
0.230 / 0.236 in
Grade Availability Grade Availability
Available on Request
