Diamond Negative Turning Blank with Hole, Thickness 0.260/0.268 in
Diamond Negative Turning Blank with Hole, Thickness 0.260/0.268 in
SKU:TUR-8f6216
Precision Diamond Negative Turning Blank with Hole for reliable turning applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative Turning Blank with Hole, Thickness 0.260/0.268 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative Turning Blank with Hole, Thickness 0.260/0.268 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

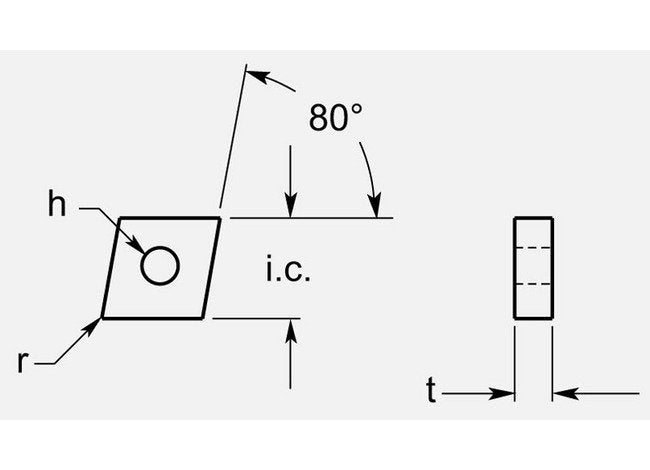

The Diamond Negative Turning Blank with Hole offers precise dimensions with a variable thickness of 0.260/0.268 in, an Inscribed Circle of 0.639/0.645 in, and a Radius of 3/64 in. Featuring an Angle of 80°, this blank also includes a hole of 0.247/0.253 in. Grade availability is flexible and can be customized upon request to meet specific requirements. Crafted for turning applications, this blank ensures accuracy and efficiency, making it ideal for both consumer and institutional buyers.
Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.247 / 0.253 in
Dimensional Specification Inscribed Circle Ic
0.639/0.645 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.260 / 0.268 in
Grade Availability Grade Availability
Available on Request
