Diamond Negative Turning Blanks with Hole Set, 0.195 / 0.205 in
Diamond Negative Turning Blanks with Hole Set, 0.195 / 0.205 in
SKU:TUR-2bde6e
Elevate turning projects with Diamond Negative Turning Blanks set, 0.195 / 0.205 in. Grade customization available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative Turning Blanks with Hole Set, 0.195 / 0.205 in
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative Turning Blanks with Hole Set, 0.195 / 0.205 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

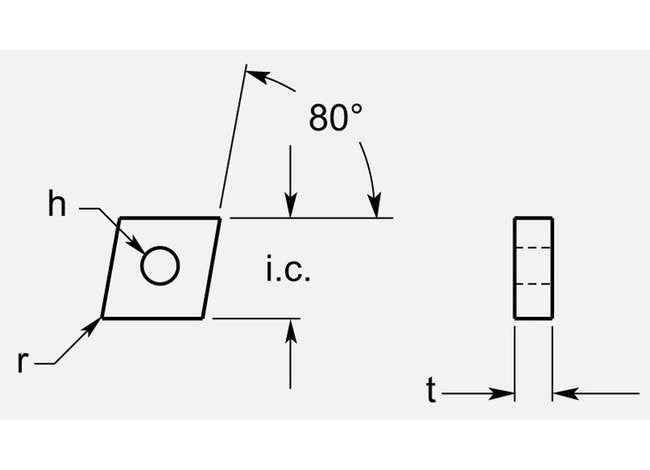

Enhance your turning projects with precision using the Diamond Negative with Hole set. Featuring a thickness of 0.195 to 0.205 inches, an Inscribed Circle of 0.515 to 0.525 inches, and an 80-degree Angle, this set offers exceptional accuracy and performance. The included holes of 0.200 to 0.206 inches ensure versatile application possibilities. Grade Availability can be tailored to your specific requirements upon request.
Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.515/0.525 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.195 / 0.205 in
Grade Availability Grade Availability
Available on Request
