Diamond Negative with Hole, 0.194/0.200 in Thickness
Diamond Negative with Hole, 0.194/0.200 in Thickness
SKU:TUR-282d91
High-precision Diamond Negative with Hole turning blank, 0.194/0.200 in thickness, Grade Availability on request.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Diamond Negative with Hole, 0.194/0.200 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
Diamond Negative with Hole, 0.194/0.200 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

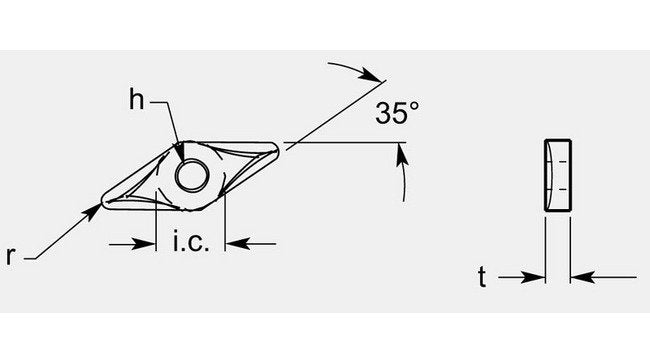

The Diamond Negative with Hole turning blank offers precision with a thickness of 0.194/0.200 inches, an Inscribed Circle of 0.389/0.395 inches, and a Radius of 0.0125 inches. Ideal for high-precision machining, it features a 35-degree angle and hole sizes of 0.148/0.152 inches. Grade Availability: Available on Request.
Product Specifications
Dimensional Specification Angle A
35 º
Dimensional Specification Hole
0.148 / 0.152 in
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Radius R
0.0125 in
Dimensional Specification Thickness T
0.194 / 0.200 in
Grade Availability Grade Availability
Available on Request
