Diamond Positive Turning Blank with ISO Style Hole
Diamond Positive Turning Blank with ISO Style Hole
SKU:TUR-b58348
Precision Diamond Positive Turning Blank with ISO Style Hole - Ideal for accurate machining. Available in various grades.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Diamond Positive Turning Blank with ISO Style Hole
$49.99
Quantity: 1
Claim Your Seller Account
Diamond Positive Turning Blank with ISO Style Hole
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diamond Positive Turning Blank with ISO Style Hole boasts a thickness range of 0.208 to 0.214 inches, making it ideal for precision machining applications. With an inscribed circle diameter of 0.639 to 0.645 inches and a hole size of 0.217 to 0.221 inches, this blank offers versatility and accuracy. It is available in various ultra-met optional grades upon request, ensuring compatibility with a wide range of machining needs.

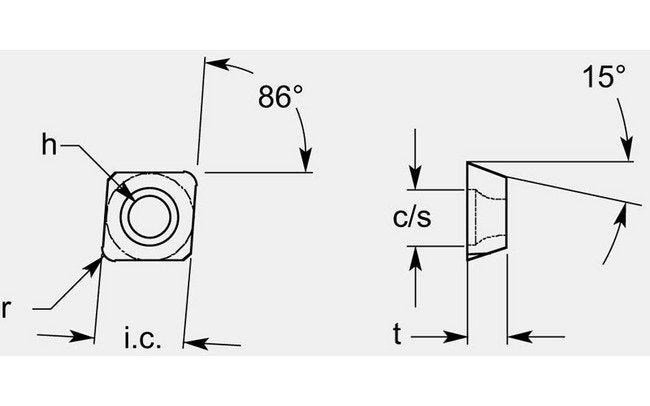

Product Specifications
Classifications Cs
0.297 / 0.301 in
Classifications Hole H
0.217 / 0.221 in
Classifications Inscribed Circle Ic
0.639/0.645 in
Classifications Radius R
1/4 in
Classifications Thickness T
0.208 / 0.214 in
Classifications Ultra Met Optional Grades
UF108 Ultra Fine Tungsten Carbide | UF110 Ultra Fine Tungsten Carbide | UF112 Ultra Fine Tungsten Carbide | UF115 Ultra Fine Tungsten Carbide | UF306 Ultra Fine Tungsten Carbide | Z1 Extra Fine Tungsten Carbide | Z13 Medium / Coarse Tungsten Carbide | Z14 Fine / Medium Tungsten Carbide | Z15 Fine to Coarse Tungsten Carbide | Z20 Fine Tungsten Carbide | Z22 Fine Tungsten Carbide | Z23 Extra Fine Tungsten Carbide | Z4 Extra Fine Tungsten Carbide | Z50 Medium Tungsten Carbide | Z52 Fine / Medium Tungsten Carbide | Z54 Medium Tungsten Carbide | Z55 Fine / Medium Tungsten Carbide | Z56 Medium / Coarse Tungsten Carbide | Z57 Medium / Coarse Tungsten Carbide | Z60 Fine Tungsten Carbide | Z70 Fine Tungsten Carbide | Z72 Fine Tungsten Carbide | Z76 Extra Fine Tungsten Carbide | Z9 Extra Fine Tungsten Carbide | ZC13 Coarse Tungsten Carbide | ZC14 Cermet and Nickel | ZC3 Cermet and Nickle | ZC5 Cermet and Nickel | ZC9 Coarse Tungsten Carbide | ZM12 Medium / Coarse Tungsten Carbide | ZM15 Medium / Coarse Tungsten Carbide | ZM18 Coarse Tungsten Carbide | ZM6 Coarse Tungsten Carbide | ZM9 Medium / Coarse Tungsten Carbide | ZN8 Cermet and Nickel | ZS16 Medium Tungsten Carbide | ZS17 Medium Tungsten Carbide | ZS18 Fine Tungsten Carbide | ZS19 Fine Tungsten Carbide
Grade Availability Grade Availability
Available on Request
