The Diamond Positive Turning Blank with ISO Style Hole boasts a thickness range of 0.260 to 0.268 inches, providing precision and durability for turning operations. Featuring an inscribed circle of 0.639 to 0.645 inches and a variety of hole sizes, this turning blank offers versatility for different machining needs. Choose from a wide range of optional ultra-met grades to customize your cutting requirements. Grade availability is flexible, with specific grades available upon request, ensuring tailored performance for your applications.
Ready to Grow Without Cash Flow Constraints?

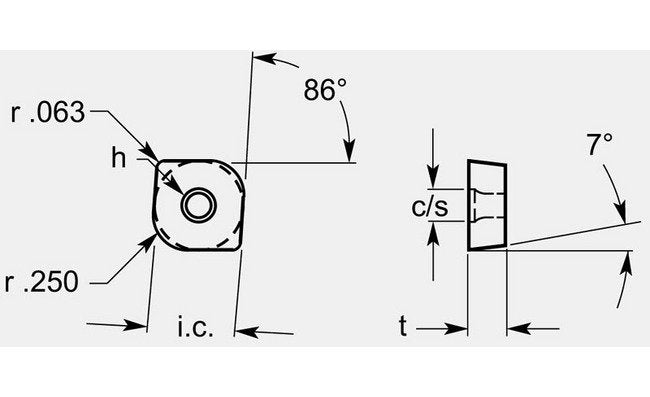

Product Specifications
Classifications Cs
0.234 / 0.238 in
Classifications Hole H
0.173 / 0.177 in
Classifications Inscribed Circle Ic
0.639/0.645 in
Classifications Radius R
0.063 / 0.250 in
Classifications Thickness T
0.260 / 0.268 in
Classifications Ultra Met Optional Grades
UF108 Ultra Fine Tungsten Carbide | UF110 Ultra Fine Tungsten Carbide | UF112 Ultra Fine Tungsten Carbide | UF115 Ultra Fine Tungsten Carbide | UF306 Ultra Fine Tungsten Carbide | Z1 Extra Fine Tungsten Carbide | Z13 Medium / Coarse Tungsten Carbide | Z14 Fine / Medium Tungsten Carbide | Z15 Fine to Coarse Tungsten Carbide | Z20 Fine Tungsten Carbide | Z22 Fine Tungsten Carbide | Z23 Extra Fine Tungsten Carbide | Z4 Extra Fine Tungsten Carbide | Z50 Medium Tungsten Carbide | Z52 Fine / Medium Tungsten Carbide | Z54 Medium Tungsten Carbide | Z55 Fine / Medium Tungsten Carbide | Z56 Medium / Coarse Tungsten Carbide | Z57 Medium / Coarse Tungsten Carbide | Z60 Fine Tungsten Carbide | Z70 Fine Tungsten Carbide | Z72 Fine Tungsten Carbide | Z76 Extra Fine Tungsten Carbide | Z9 Extra Fine Tungsten Carbide | ZC13 Coarse Tungsten Carbide | ZC14 Cermet and Nickel | ZC3 Cermet and Nickle | ZC5 Cermet and Nickel | ZC9 Coarse Tungsten Carbide | ZM12 Medium / Coarse Tungsten Carbide | ZM15 Medium / Coarse Tungsten Carbide | ZM18 Coarse Tungsten Carbide | ZM6 Coarse Tungsten Carbide | ZM9 Medium / Coarse Tungsten Carbide | ZN8 Cermet and Nickel | ZS16 Medium Tungsten Carbide | ZS17 Medium Tungsten Carbide | ZS18 Fine Tungsten Carbide | ZS19 Fine Tungsten Carbide
Grade Availability Grade Availability
Available on Request
