Diamond Positive Turning Blanks with ISO Style Hole
Diamond Positive Turning Blanks with ISO Style Hole
SKU:TUR-0008f2
High-quality Diamond Positive turning blanks with ISO Style Hole, optimized for precision and durability in turning applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Diamond Positive Turning Blanks with ISO Style Hole
$59.99
Quantity: 1
Claim Your Seller Account
Diamond Positive Turning Blanks with ISO Style Hole
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Diamond Positive turning blanks with ISO Style Hole offer precision and durability for turning applications. With a thickness ranging from 0.198 to 0.206 inches, these blanks ensure consistent performance. The variety of optional grades available, from UF108 Ultra Fine Tungsten Carbide to ZS19 Fine Tungsten Carbide, caters to diverse machining needs. This product guarantees high-quality results and longevity, making it an ideal choice for industrial and institutional settings.

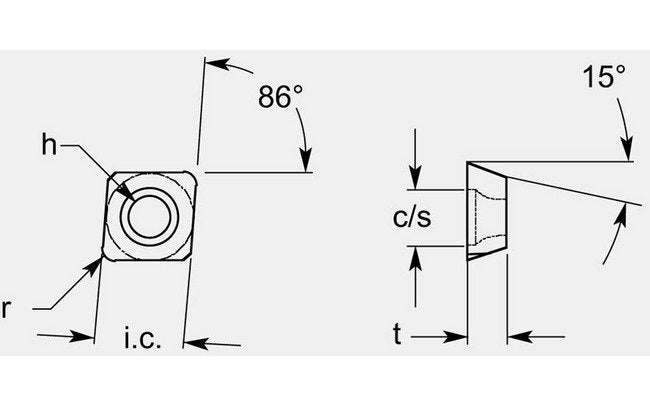

Product Specifications
Classifications Cs
0.296 / 0.301 in
Classifications Hole H
0.216 / 0.222 in
Classifications Inscribed Circle Ic
0.514/0.520 in
Classifications Radius R
1/8 in
Classifications Thickness T
0.198 / 0.206 in
Classifications Ultra Met Optional Grades
UF108 Ultra Fine Tungsten Carbide | UF110 Ultra Fine Tungsten Carbide | UF112 Ultra Fine Tungsten Carbide | UF115 Ultra Fine Tungsten Carbide | UF306 Ultra Fine Tungsten Carbide | Z1 Extra Fine Tungsten Carbide | Z13 Medium / Coarse Tungsten Carbide | Z14 Fine / Medium Tungsten Carbide | Z15 Fine to Coarse Tungsten Carbide | Z20 Fine Tungsten Carbide | Z22 Fine Tungsten Carbide | Z23 Extra Fine Tungsten Carbide | Z4 Extra Fine Tungsten Carbide | Z50 Medium Tungsten Carbide | Z52 Fine / Medium Tungsten Carbide | Z54 Medium Tungsten Carbide | Z55 Fine / Medium Tungsten Carbide | Z56 Medium / Coarse Tungsten Carbide | Z57 Medium / Coarse Tungsten Carbide | Z60 Fine Tungsten Carbide | Z70 Fine Tungsten Carbide | Z72 Fine Tungsten Carbide | Z76 Extra Fine Tungsten Carbide | Z9 Extra Fine Tungsten Carbide | ZC13 Coarse Tungsten Carbide | ZC14 Cermet and Nickel | ZC3 Cermet and Nickle | ZC5 Cermet and Nickel | ZC9 Coarse Tungsten Carbide | ZM12 Medium / Coarse Tungsten Carbide | ZM15 Medium / Coarse Tungsten Carbide | ZM18 Coarse Tungsten Carbide | ZM6 Coarse Tungsten Carbide | ZM9 Medium / Coarse Tungsten Carbide | ZN8 Cermet and Nickel | ZS16 Medium Tungsten Carbide | ZS17 Medium Tungsten Carbide | ZS18 Fine Tungsten Carbide | ZS19 Fine Tungsten Carbide
Grade Availability Grade Availability
Available on Request
