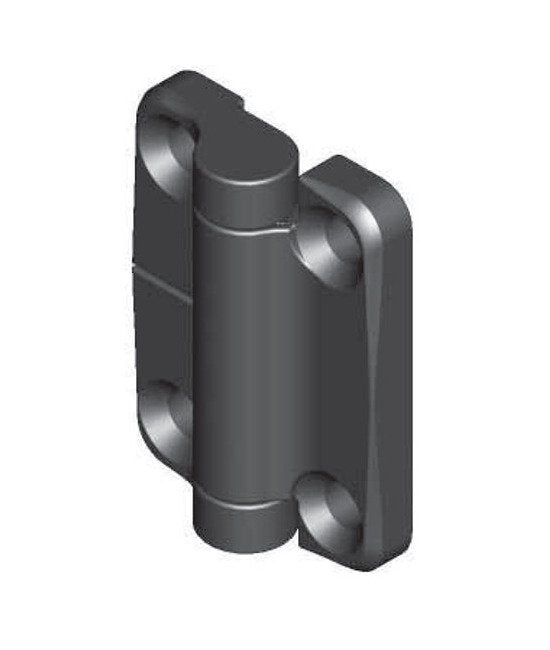

Die Cast Zinc Friction Hinge with Asymmetric Torque - Black Powder Coated Finish
Die Cast Zinc Friction Hinge with Asymmetric Torque - Black Powder Coated Finish
SKU:IND-897997
Premium Die Cast Zinc Friction Hinge with Asymmetric Torque and Black Powder Coated Finish, ideal for secure and reliable panel hinging in industrial settings.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Die Cast Zinc Friction Hinge with Asymmetric Torque - Black Powder Coated Finish
$24.99
Quantity: 1
Claim Your Seller Account
Die Cast Zinc Friction Hinge with Asymmetric Torque - Black Powder Coated Finish
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your panel hinging system with the All Electronics Hardware Die Cast Zinc Friction Hinge. This high-quality hinge offers asymmetric torque, requiring 1.4 N·m to open and 2.3 N·m to close, ensuring secure panel positioning. Crafted from durable materials like die-cast zinc and stainless steel, and featuring a black powder-coated finish, this hinge guarantees longevity and corrosion resistance. With special features including consistent torque performance after 25,000 cycles, this hinge is a reliable choice for industrial environments. Compliant with federal procurement standards, this hinge delivers both performance and durability for a wide range of applications.
Product Specifications
Specifications Hinge Leaves Material
Die Cast Zinc
Specifications Hinge Pin Material
Stainless Steel (SS)
Specifications Metal Hinge With Constant Friction
Asymmetric Torque
Specifications Mounting
Screw
Specifications Special Features
Life: Within 20 Percent of stated torque after 25,000 cycles.
Specifications Surface Finish
Black Powder Coated
Specifications Torque To Close
2.3 N·m | 20.4 in·lb
Specifications Torque To Open
1.4 N·m | 12.4 in·lb
