Die-Thane 0.315 Inch V-Opening 2V Press Brake Die
Die-Thane 0.315 Inch V-Opening 2V Press Brake Die
SKU:DIE-6ada12
Achieve precise, scratch-free bends effortlessly with the Die-Thane 0.315 Inch V-Opening 2V Press Brake Die.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Die-Thane 0.315 Inch V-Opening 2V Press Brake Die
$89.99
Quantity: 1
Claim Your Seller Account
Die-Thane 0.315 Inch V-Opening 2V Press Brake Die
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Die-Thane 0.315 Inch V-Opening 2V Press Brake Die is a precision tool designed for American and European style machines, facilitating scratch-free bending of sheet metal with its tooling grade Urethane construction. This 2V Die ensures hassle-free size adjustments on compatible quick change rails, saving time and costs. With no alignment or shimming required, it delivers efficient air bending performance, making it a valuable asset for metal fabrication projects.
Product Specifications
Specifications Angle Of V
30 º
Specifications Features

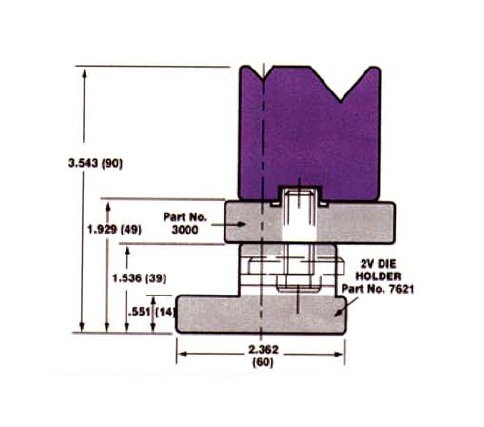

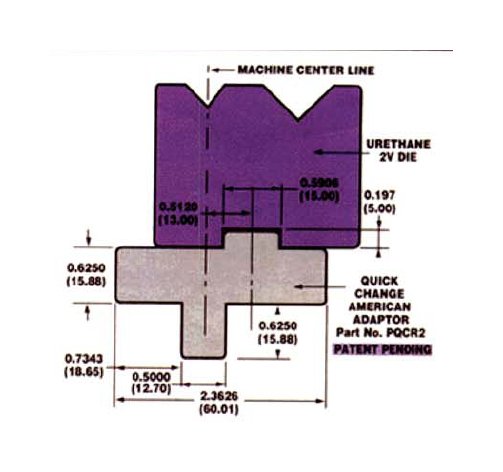

For American Style Machines, the 2-V Die can be used with a special rail (UST Part Number POCR2). | For European Style Machines, the 2-V Die can be used with a quick change rail, mounted on a 2-V Die holder. | Just drop it on a Quick Change Die Rail and changing sizes of V-Dies will be a snap. | Made of a very hard, tooling grade Urethane for SCRATCH FREE bending of sheet metal. | No need for alignment or shimming. | Save Time and Money in forming pre-finished sheet metal as compared to using plastic film die covers. | The 2V Dies are designed for Air bending only. The heights are the same as comparable Steel V Dies . | Turn it around for a different size V-opening or drop in a new die.
Specifications Height H
1.969 in | 50 mm
Specifications Radius R1
1.0 mm
Specifications Radius R2
1.0 mm
Specifications V Opening V1
0.315 in | 8 mm
Specifications V Opening V2
0.473 in | 12 mm
Specifications Width W
2.362 in | 60 mm
