Die-Thane 2V-Die Press Brake V-Opening 0.630 Inch
Die-Thane 2V-Die Press Brake V-Opening 0.630 Inch
SKU:DIE-432830
Precision 0.630in V-Opening Die-Thane Press Brake for efficient, scratch-free sheet metal bending.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Die-Thane 2V-Die Press Brake V-Opening 0.630 Inch
$149.99
Quantity: 1
Claim Your Seller Account
Die-Thane 2V-Die Press Brake V-Opening 0.630 Inch
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Die-Thane 2V-Die Press Brake features a precise V-Opening of 0.630 inches, perfect for American and European Style Machines. Crafted from hard Urethane, it ensures scratch-free bending of sheet metal, saving time and money. With no need for alignment or shimming, changing V-Dies is effortless, offering flexibility and efficiency in forming pre-finished sheet metal. Designed for Air bending only, this 2V-Die guarantees top-quality results for various bending needs.
Product Specifications
Specifications Angle Of V
88 º
Specifications Features

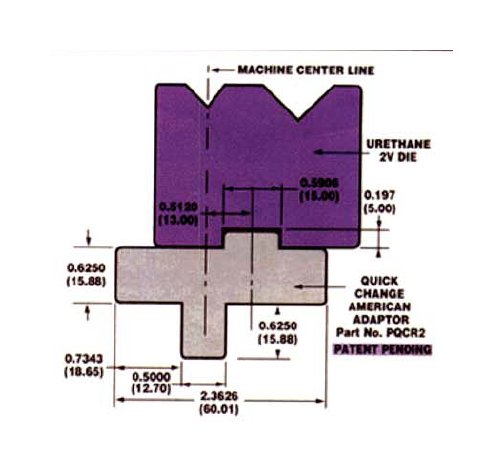

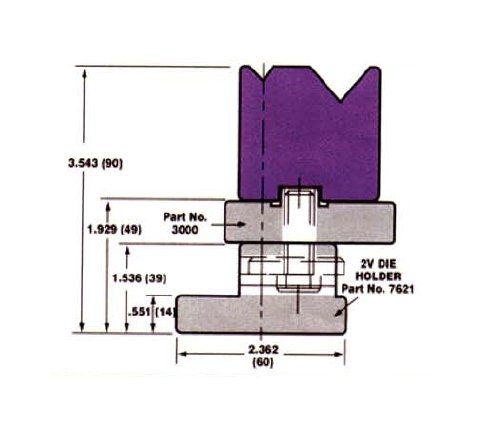

For American Style Machines, the 2-V Die can be used with a special rail (UST Part Number POCR2). | For European Style Machines, the 2-V Die can be used with a quick change rail, mounted on a 2-V Die holder. | Just drop it on a Quick Change Die Rail and changing sizes of V-Dies will be a snap. | Made of a very hard, tooling grade Urethane for SCRATCH FREE bending of sheet metal. | No need for alignment or shimming. | Save Time and Money in forming pre-finished sheet metal as compared to using plastic film die covers. | The 2V Dies are designed for Air bending only. The heights are the same as comparable Steel V Dies . | Turn it around for a different size V-opening or drop in a new die.
Specifications Height H
1.811 in | 46 mm
Specifications Radius R1
0.8 mm
Specifications Radius R2
0.8 mm
Specifications V Opening V1
0.630 in | 20 mm
Specifications V Opening V2
0.984 in | 25 mm
Specifications Width W
2.362 in | 60 mm
