Die-Thane 4 Way Press Brake Die, Model FW2538
Die-Thane 4 Way Press Brake Die, Model FW2538
SKU:DIE-1086a5
Precision Die-Thane Press Brake 4 Way Die for accurate and cost-effective metal bending operations.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Die-Thane 4 Way Press Brake Die, Model FW2538
$129.99
Quantity: 1
Claim Your Seller Account
Die-Thane 4 Way Press Brake Die, Model FW2538
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

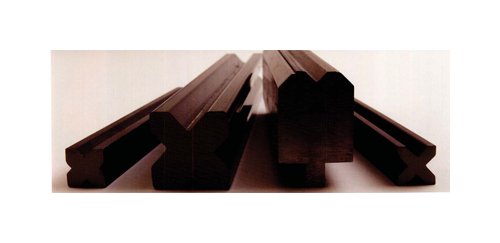

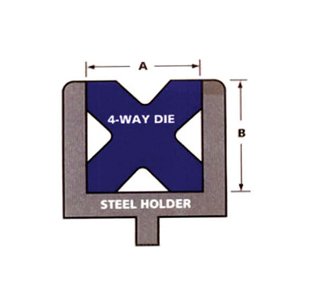

The Die-Thane Press Brake 4 Way Die, Model FW2538, is a precision-engineered tool constructed from the hardest grade of Die-thane material, designed for optimal performance in bending applications. Featuring V-Openings of 1/4 in and 3/8 in, a Block Size of 1 X 1 in, and compatible with a Steel Holder (Part Number: SH1010) measuring 2 in in width and height, this die offers exceptional accuracy and durability. With acute-angle dies for precise bends, four-way dies for economical 90º bending, and a Hemming Die Pad for versatile hemming setups, this tool is a versatile solution for various metalworking needs.
Product Specifications
Specifications Block Size
1 X 1 in
Specifications Features
Acute-Angle Dies are used for bending the first hit of a hemming bend or for air bending any angle (up to 30º included angle) | Four-way Dies are the most economical way of bending 90º bends in pre -polished or pre-coated metals. | Hemming Die Pad is used for 2 hit single set-up hemming die.
Specifications Steel Holder Height
2 in
Specifications Steel Holder Part Number
SH1010
Specifications Steel Holder Width
2 in
Specifications V Openings
1/4 in | 3/8 in
