Die-Thane DT-25 Solid Forming Die Pad
Die-Thane DT-25 Solid Forming Die Pad
SKU:DIE-5c6b92
Enhance metal forming efficiency with the Die-Thane DT-25 Solid Forming Die Pad. Designed for versatility, durability, and precision.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Die-Thane DT-25 Solid Forming Die Pad
$69.99
Quantity: 1
Claim Your Seller Account
Die-Thane DT-25 Solid Forming Die Pad
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

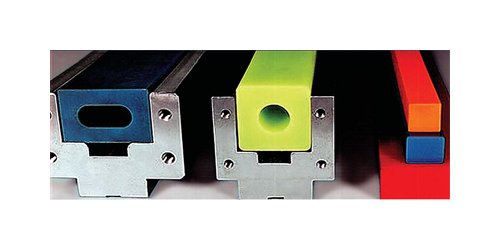

The Die-Thane DT-25 Solid Forming Die Pad is a versatile solution for universal female dies. Designed for compatibility with various materials, gauges, and punches, this pad enables the effortless formation of diverse shapes, radii, and angles. With enhanced durability and precision engineering, the Die-Thane DT-25 ensures consistent performance and cost-effective maintenance, making it an ideal choice for industrial applications seeking reliable die pads.
Product Specifications
Specifications Features

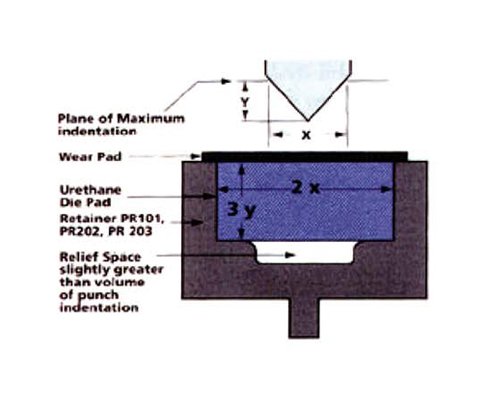

Wear pads are used to prevent cutting by the sheet metal or punch, thus prolonging pad life.
Specifications Number Of 11 Gauge Sheets Of 1x1 Inch In Metal Sq
21
Specifications Number Of 11 Gauge Sheets Of 2x2 Inch In Metal Sq
14
Specifications Number Of 11 Gauge Sheets Of 2x3 Inch In Metal Sq
11
Specifications Number Of 14 Gauge Sheets Of 1x1 Inch In Metal Sq
9
Specifications Number Of 14 Gauge Sheets Of 2x2 Inch In Metal Sq
7
Specifications Number Of 14 Gauge Sheets Of 2x3 Inch In Metal Sq
6
Specifications Number Of 16 Gauge Sheets Of 1x1 Inch In Metal Sq
6
Specifications Number Of 16 Gauge Sheets Of 2x2 Inch In Metal Sq
5
Specifications Number Of 16 Gauge Sheets Of 2x3 Inch In Metal Sq
4
Specifications Number Of 20 Gauge Sheets Of 1x1 Inch In Metal Sq
4
Specifications Number Of 20 Gauge Sheets Of 2x2 Inch In Metal Sq
3
Specifications Number Of 20 Gauge Sheets Of 2x3 Inch In Metal Sq
3
Specifications Type Of Pads

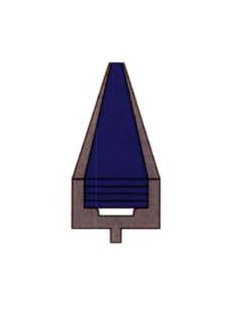

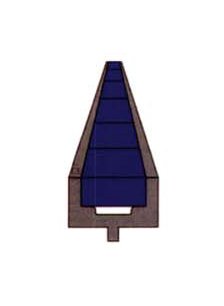

Die Blocks: Pads cut to 2" lengths are butted end to end in a retainer. Under load, these blocks function the same way as a single pad. Damaged portion of the pad can be re-placed economically. | Die Pads: Available as squares and rectangles in several grades. Available in 48" lengths. Pads must be used in retainers for optimum life. Retainers must have relief below pads. | Wafer Pads: 4 sheets (1/4" or 1/2" thick) are stacked on top of each other. Ideal for light gauge metals (up to 16 Ga. M.S.) Wafers enable deeper penetration such as in U-forming.
