Die-Thane Press Brake 2V-Die Set, 0.551 Inch V-Opening
Die-Thane Press Brake 2V-Die Set, 0.551 Inch V-Opening
SKU:DIE-ccd1d0
Precision 2V-Die Set, 0.551in V-Opening, Scratch-free Bending, Easy Size Changes, Ideal for Air Bending
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Die-Thane Press Brake 2V-Die Set, 0.551 Inch V-Opening
$189.99
Quantity: 1
Claim Your Seller Account
Die-Thane Press Brake 2V-Die Set, 0.551 Inch V-Opening
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Die-Thane Press Brake 2V-Die Set with a precise 0.551 inch V-Opening is designed to meet the demanding bending needs of both American and European style machines. Crafted from tooling grade Urethane, this 2V Die ensures scratch-free bending of sheet metal without the need for alignment or shimming. It offers quick and easy size changes with a compatible rail system, saving valuable time and costs. Ideal for air bending applications, this die set guarantees efficient and accurate forming, enhancing workflow efficiency.
Product Specifications
Specifications Angle Of V
88 º
Specifications Features

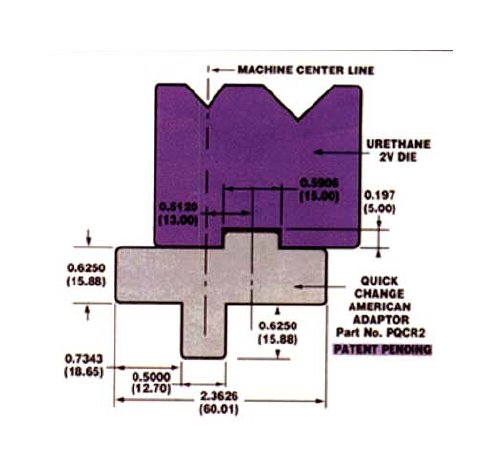

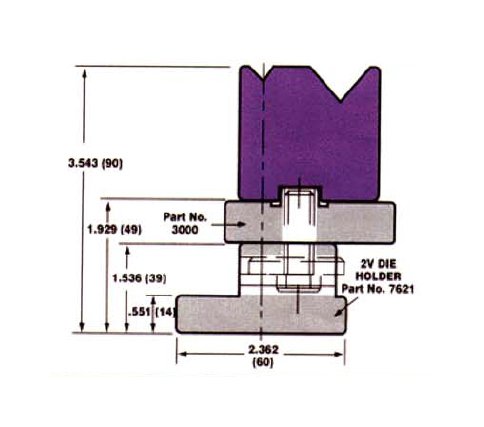

For American Style Machines, the 2-V Die can be used with a special rail (UST Part Number POCR2). | For European Style Machines, the 2-V Die can be used with a quick change rail, mounted on a 2-V Die holder. | Just drop it on a Quick Change Die Rail and changing sizes of V-Dies will be a snap. | Made of a very hard, tooling grade Urethane for SCRATCH FREE bending of sheet metal. | No need for alignment or shimming. | Save Time and Money in forming pre-finished sheet metal as compared to using plastic film die covers. | The 2V Dies are designed for Air bending only. The heights are the same as comparable Steel V Dies . | Turn it around for a different size V-opening or drop in a new die.
Specifications Height H
1.811 in | 46 mm
Specifications Radius R1
0.5 mm
Specifications Radius R2
0.5 mm
Specifications V Opening V1
0.551 in | 14 mm
Specifications V Opening V2
0.709 in | 18 mm
Specifications Width W
2.362 in | 60 mm
