Die-Thane Press Brake 2V-Die with 0.236" V-Opening

Name: Die-Thane Press Brake 2V-Die with 0.236" V-Opening
Brand: Polyurethane Products Corp.
SKU: DIE-926b69
Price: 99.99 USD
Availability: OutOfStock

SKU:DIE-926b69

Achieve precision bending with our Die-Thane 2V-Die, featuring a 0.236" V-Opening. Compatible with various machines for seamless size changes.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Die-Thane Press Brake 2V-Die with a 0.236" V-Opening is designed for precision bending operations on sheet metal. With V-Openings of 0.236" and 0.394", and a 90° angle, this tool ensures accurate bending without scratches, eliminating the need for alignment or shimming. It is compatible with both American and European Style Machines, offering quick and easy size changes for efficient operations.

Product Specifications

Specifications Angle Of V

90 Âº

Specifications Features

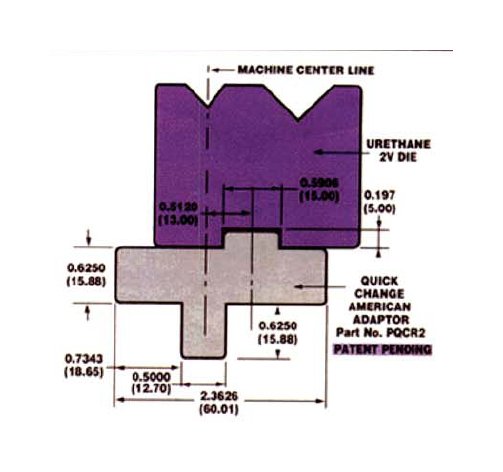

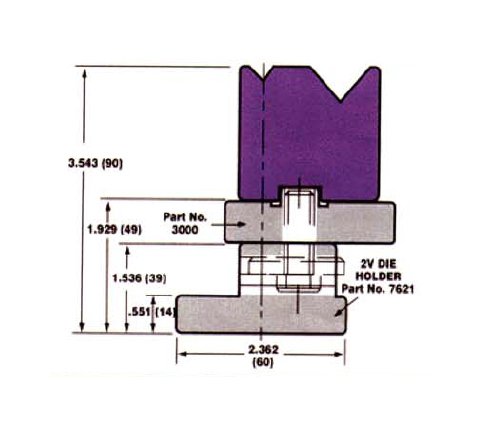

For American Style Machines, the 2-V Die can be used with a special rail (UST Part Number POCR2). | For European Style Machines, the 2-V Die can be used with a quick change rail, mounted on a 2-V Die holder. | Just drop it on a Quick Change Die Rail and changing sizes of V-Dies will be a snap. | Made of a very hard, tooling grade Urethane for SCRATCH FREE bending of sheet metal. | No need for alignment or shimming. | Save Time and Money in forming pre-finished sheet metal as compared to using plastic film die covers. | The 2V Dies are designed for Air bending only. The heights are the same as comparable Steel V Dies . | Turn it around for a different size V-opening or drop in a new die.

Specifications Height H

1.811 in | 46 mm

Specifications Radius R1

0.4 mm

Specifications Radius R2

0.6 mm

Specifications V Opening V1

0.236 in | 6 mm

Specifications V Opening V2

0.394 in | 10 mm

Specifications Width W

1.968 in | 50 mm

Die-Thane Press Brake 2V-Die with 0.236" V-Opening
