Die-Thane Press Brake 4 Way Die - Model FW1120
Die-Thane Press Brake 4 Way Die - Model FW1120
SKU:DIE-1898bc
High-grade Die-Thane 4 Way Die set for precision bending on pre-coated metals with acute-angle and four-way dies.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Die-Thane Press Brake 4 Way Die - Model FW1120
$129.99
Quantity: 1
Claim Your Seller Account
Die-Thane Press Brake 4 Way Die - Model FW1120
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

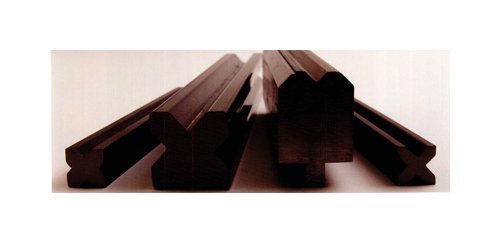

The Die-Thane Press Brake 4 Way Die - Model FW1120 is crafted from the toughest Die-thane grade, ideal for heavy-duty industrial applications. Designed for use in a sturdy steel holder, this die features V-openings ranging from 1 1/8 in to 2 in, making it versatile for various bending applications. With acute-angle dies for precise bending and economical four-way dies for efficient 90º bends, this die set is a reliable choice for pre-polished or pre-coated metals. Additionally, the included hemming die pad ensures seamless hemming operations, perfect for single set-up tasks.
Product Specifications

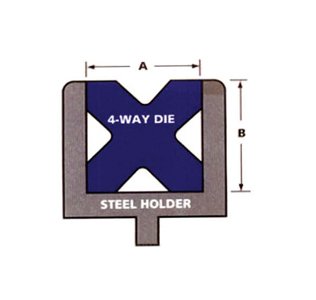

Specifications Block Size
3 X 3 in
Specifications Features
Acute-Angle Dies are used for bending the first hit of a hemming bend or for air bending any angle (up to 30º included angle) | Four-way Dies are the most economical way of bending 90º bends in pre -polished or pre-coated metals. | Hemming Die Pad is used for 2 hit single set-up hemming die.
Specifications Steel Holder Height
4 in
Specifications Steel Holder Part Number
SH404
Specifications Steel Holder Width
4 in
Specifications V Openings
1 1/8 in | 1 1/4 in | 1 1/2 in | 2 in
