Die-Thane Press Brake 4 Way Die - Model FW6210
Die-Thane Press Brake 4 Way Die - Model FW6210
SKU:DIE-e085f4
High-grade Die-Thane Press Brake 4 Way Die for precise and economical bending operations. V-Openings: 5/8 - 1 in.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Die-Thane Press Brake 4 Way Die - Model FW6210
$79.99
Quantity: 1
Claim Your Seller Account
Die-Thane Press Brake 4 Way Die - Model FW6210
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

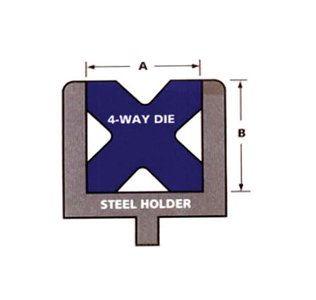

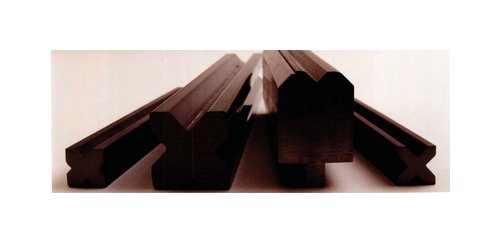

The Die-Thane Press Brake 4 Way Die - Model FW6210 is crafted from the hardest grade of Die-thane for exceptional durability. This versatile die set features V-Openings of 5/8 in, 3/4 in, 7/8 in, and 1 in, suitable for various bending applications. Designed for use in a steel holder (SH3030), with a Block Size of 2 X 2 in, Steel Holder Width of 3 in, and Steel Holder Height of 3 in, this die set offers precision bending capabilities. Acute-Angle Dies enable bending the first hit of a hemming bend or air bending at angles up to 30º. Ideal for bending 90º bends in pre-polished or pre-coated metals economically. The Hemming Die Pad included facilitates efficient hemming setups in a single operation.
Product Specifications
Specifications Block Size
2 X 2 in
Specifications Features
Acute-Angle Dies are used for bending the first hit of a hemming bend or for air bending any angle (up to 30º included angle) | Four-way Dies are the most economical way of bending 90º bends in pre -polished or pre-coated metals. | Hemming Die Pad is used for 2 hit single set-up hemming die.
Specifications Steel Holder Height
3 in
Specifications Steel Holder Part Number
SH3030
Specifications Steel Holder Width
3 in
Specifications V Openings
5/8 in | 3/4 in | 7/8 in | 1 in
