Die-Thane Press Brake 4 Way Die - Model FW6310
Die-Thane Press Brake 4 Way Die - Model FW6310
SKU:DIE-c3f9c5
Achieve precise and economical 90º bends with the Die-Thane Press Brake 4 Way Die - Model FW6310. Crafted from the hardest grade of Die-thane. V-Openings: 5/8 in, 3/4 in, 7/8 in, 1 in.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Die-Thane Press Brake 4 Way Die - Model FW6310
$299.99
Quantity: 1
Claim Your Seller Account
Die-Thane Press Brake 4 Way Die - Model FW6310
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

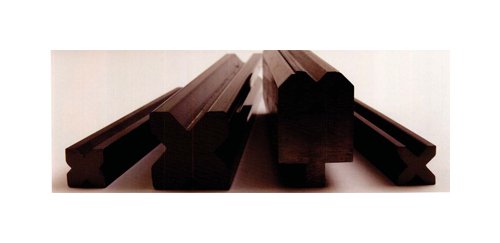

The Die-Thane Press Brake 4 Way Die - Model FW6310 is a superior choice for precise bending needs. Crafted from the hardest grade of Die-thane, this die set offers exceptional durability and precision. With V-Openings of 5/8 in, 3/4 in, 7/8 in, and 1 in, along with a Block Size of 1 1/2 X 1 1/2 in, this die ensures versatile bending capabilities. The acute-angle dies enable seamless bending for the first hit of a hemming bend or air bending up to 30º included angle. Ideal for 90º bends in pre-polished or pre-coated metals, this cost-effective solution is a must-have for efficient bending operations. Hemming Die Pad included for convenient hemming setup.
Product Specifications

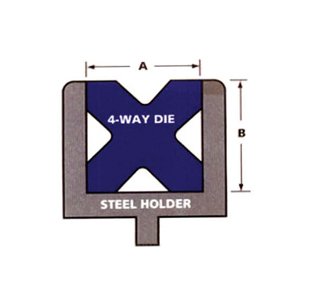

Specifications Block Size
1 1/2 X 1 1/2 in
Specifications Features
Acute-Angle Dies are used for bending the first hit of a hemming bend or for air bending any angle (up to 30º included angle) | Four-way Dies are the most economical way of bending 90º bends in pre -polished or pre-coated metals. | Hemming Die Pad is used for 2 hit single set-up hemming die.
Specifications Steel Holder Height
2 in
Specifications Steel Holder Part Number
SH1515
Specifications Steel Holder Width
2 1/2 in
Specifications V Openings
5/8 in | 3/4 in | 7/8 in | 1 in
