Die-Thane Solid Forming Die Pad, Model DT-35
Die-Thane Solid Forming Die Pad, Model DT-35
SKU:DIE-318444
Versatile Die-Thane Solid Forming Die Pad for precise metal forming and prolonged lifespan.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Die-Thane Solid Forming Die Pad, Model DT-35
$79.99
Quantity: 1
Claim Your Seller Account
Die-Thane Solid Forming Die Pad, Model DT-35
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

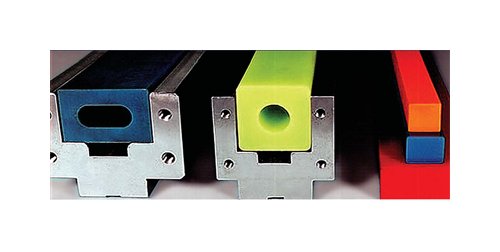

The Die-Thane Solid Forming Die Pad, Model DT-35, is a versatile solution for forming a variety of shapes, radii, and angles across different materials and gauges. With the ability to work effectively with different metal squares, this pad ensures precise and consistent results. Its wear pads effectively prevent cutting, significantly extending the pad's lifespan. Ideal for various applications, the Die-Thane Solid Forming Die Pad is a reliable choice for industrial and institutional use.
Product Specifications
Specifications Features

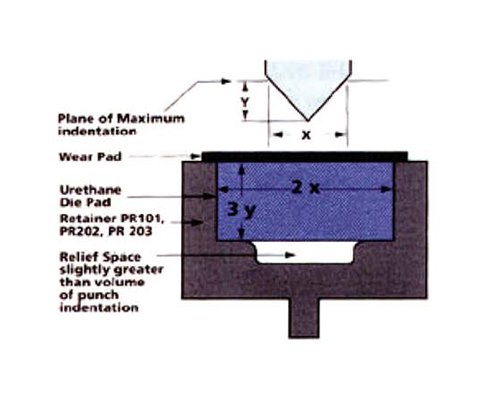

Wear pads are used to prevent cutting by the sheet metal or punch, thus prolonging pad life.
Specifications Number Of 11 Gauge Sheets Of 1x1 Inch In Metal Sq
15
Specifications Number Of 11 Gauge Sheets Of 2x2 Inch In Metal Sq
13
Specifications Number Of 11 Gauge Sheets Of 2x3 Inch In Metal Sq
10
Specifications Number Of 14 Gauge Sheets Of 1x1 Inch In Metal Sq
7
Specifications Number Of 14 Gauge Sheets Of 2x2 Inch In Metal Sq
7
Specifications Number Of 14 Gauge Sheets Of 2x3 Inch In Metal Sq
6
Specifications Number Of 16 Gauge Sheets Of 1x1 Inch In Metal Sq
4
Specifications Number Of 16 Gauge Sheets Of 2x2 Inch In Metal Sq
4
Specifications Number Of 16 Gauge Sheets Of 2x3 Inch In Metal Sq
4
Specifications Number Of 20 Gauge Sheets Of 1x1 Inch In Metal Sq
2
Specifications Number Of 20 Gauge Sheets Of 2x2 Inch In Metal Sq
3
Specifications Number Of 20 Gauge Sheets Of 2x3 Inch In Metal Sq
3
Specifications Type Of Pads

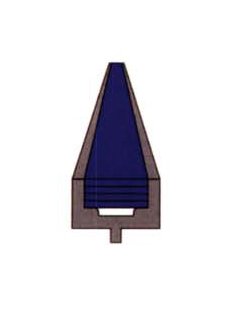

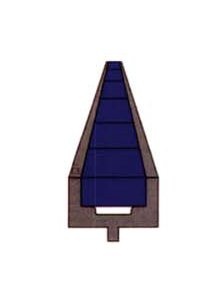

Die Blocks: Pads cut to 2" lengths are butted end to end in a retainer. Under load, these blocks function the same way as a single pad. Damaged portion of the pad can be re-placed economically. | Die Pads: Available as squares and rectangles in several grades. Available in 48" lengths. Pads must be used in retainers for optimum life. Retainers must have relief below pads. | Wafer Pads: 4 sheets (1/4" or 1/2" thick) are stacked on top of each other. Ideal for light gauge metals (up to 16 Ga. M.S.) Wafers enable deeper penetration such as in U-forming.
