Dillon Quick-Check Tension Meter - Professional Grade Tension Gauge

Name: Dillon Quick-Check Tension Meter - Professional Grade Tension Gauge
Brand: Lexco Cable Manufacturing
SKU: WIR-556964
Price: 2599.99 USD
Availability: OutOfStock

SKU:WIR-556964

Professional grade Dillon Quick-Check Tension Meter for precise wire tension measurements. Advanced features and durable design for accurate results.

$2,599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

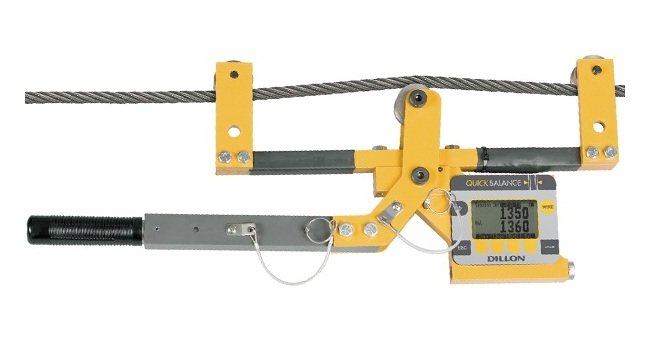

The Dillon Quick-Check Tension Meter is a high-precision tool designed for measuring tension in wire ropes with unparalleled accuracy. With a capacity of 2000 x 2 lbf and tension capacities ranging from 2000 lb to 3500 kg, this tension meter guarantees precise readings calibrated to specific wire sizes. Its advanced features include up to 15 stored calibrations, operating range from -4 to 140 Â°F, and a user-friendly Dot-graphic LCD display. This durable meter is built for outdoor use, with sheaves featuring bearings for friction elimination, a telescoping handle for quick engagement, and a highly visible yellow finish for enhanced visibility.

Product Specifications

Features 0

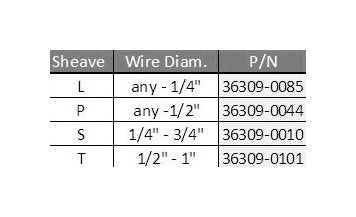

Sheaves with bearings eliminate friction and provide the best accuracyAccommodates a wide range of wire sizes and stylesTelescoping handle engages meter quickly with minimal effortHighly visible yellow finish Easy-to-read display with full-text promptsUses popular AA batteries and has long life between changesEasy to use soft-key interface

Specifications Accuracy

Â±3% instrument capacity (calibrated to specific wire size)

Specifications Capacity Resolution

2000 x 2 lbf

Specifications Display

Dot-graphic LCD display supports full text and 1 inch high digits

Specifications Environment Protection

Suitable for continued outdoor use

Specifications Loading Error

Cable elongation of only 0.08 " | 2 mm

Specifications Number Of Calibrations

Up to 15 can be stored independently

Specifications Operating Range

-4 to 140 ÂºF | -20 to 60 ÂºC

Specifications Recalibration

At user discretion. Commonly 24 months but should be more frequently with heavy use. Factory recalibrations conducted typically in 2-4 days. On-site recalibration may be possible through your Dillon distributor.

Specifications Resolution

Configurable low/med/high

Specifications Size

10 x 23 x 3 " | 25 x 59 x 8 cm

Specifications Tension Capacities

2000 lb | 8000 lb | 10 kN | 35 kN | 1000 kg | 3500 kg

Specifications Tension Units Of Measure

pound-force, kilogram force, Newton

Specifications Weight

11 lb | 5 kg

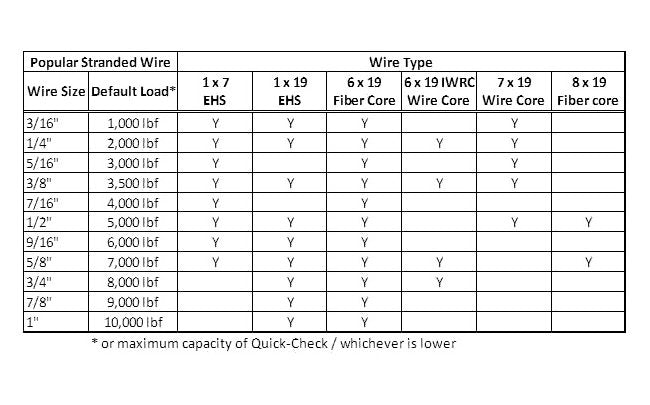

Specifications Wire Sizes

3/16" - 3/4"

CAGE

0T9L4

NAICS

333991

PSC

5110

Dillon Quick-Check Tension Meter - Professional Grade Tension Gauge
