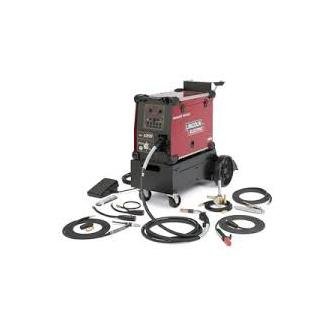

Dimension 302 CC/CV Multiprocess Welder
Dimension 302 CC/CV Multiprocess Welder
SKU:WEL-7b088c
Powerful 3-phase welder with diverse processes and exceptional portability for precise welding on all metals.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Dimension 302 CC/CV Multiprocess Welder
$3,499.99
Quantity: 1
Claim Your Seller Account
Dimension 302 CC/CV Multiprocess Welder
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dimension 302 Multiprocess Welder is a cutting-edge 3-phase machine offering versatile output power ranging from 10 to 32 V and 15 to 375 A. Equipped with advanced processes including Air Carbon Arc Cutting & Gouging, Flux Cored, MIG, Pulsed TIG, Stick, Submerged Arc, and TIG, it ensures top-notch welding capabilities on all metals. The lift eye and optional running gear enhance portability, making it ideal for shipbuilding, railroad, fabrication, and pipe welding applications. Efficient and effective, this welder is a must-have for professionals seeking precision and power in their welding projects.
Product Specifications
Specifications Input Power
3-Phase
Specifications Output Power
10 - 32 V | 15 - 375 A
Specifications Portability
Lift Eye | Optional Running Gear
Specifications Processes
Air Carbon Arc Cutting & Gouging (CAC-A) 1/4" | Flux Cored (FCAW) | MIG (GMAW) | Pulsed TIG (GTAW-P) | Stick (SMAW) | Submerged Arc (SAW) | TIG (GTAW)
Specifications Special Features
Power Efficient
Specifications Applications
Shipbuilding, Railroad, Fabrication, Pipe
Specifications Weldable Metals
All Metals
