Dimension 452 Welding Machine 60Hz 200/230/460V
Dimension 452 Welding Machine 60Hz 200/230/460V
SKU:WEL-735e79
Powerful and versatile CC/CV welder for diverse industrial applications.
Regular price
$4,789.99
Regular price
Sale price
$4,789.99
Unit price
per
Initiate Order
Dimension 452 Welding Machine 60Hz 200/230/460V
$4,789.99
Quantity: 1
Claim Your Seller Account
Dimension 452 Welding Machine 60Hz 200/230/460V
$4,789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

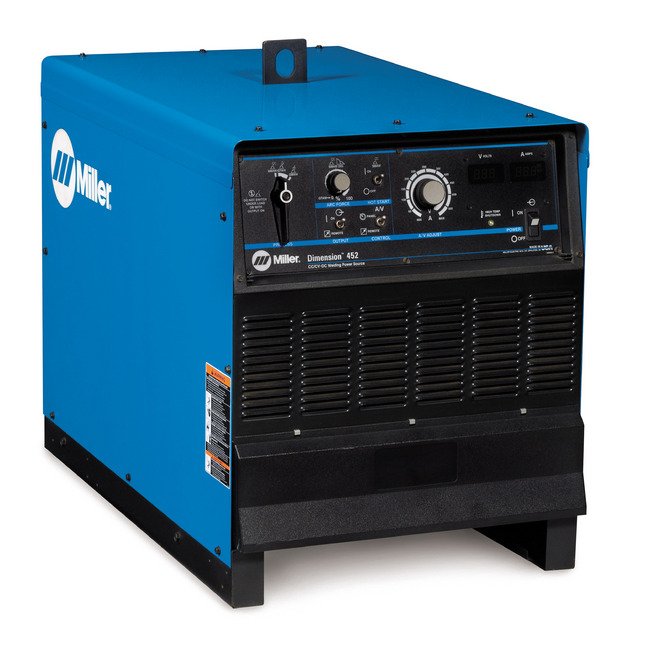

The Dimension 452 60Hz 200/230/460V Welding Machine is a robust CC/CV multiprocess welder suitable for a wide range of applications. With 3-Phase input power, this machine offers an output power range of 10 - 38V and 20 - 565A, making it versatile for different welding processes including Air Carbon Arc Cutting & Gouging, Flux Cored, MIG, Pulsed TIG, Stick, Submerged Arc, and TIG welding. Its portability is enhanced by the MIG Runner feature and optional Running Gear. Capable of welding all metals, this machine is power efficient and ideal for industries like shipbuilding, railroad, fabrication, and pipe welding.
Product Specifications
Specifications Input Power
3-Phase
Specifications Output Power
10 - 38 V | 20 - 565 A
Specifications Portability
MIG Runner | Optional Running Gear
Specifications Processes
Air Carbon Arc Cutting & Gouging (CAC-A) 1/4" | Flux Cored (FCAW) | MIG (GMAW) | Pulsed TIG (GTAW-P) | Stick (SMAW) | Submerged Arc (SAW) | TIG (GTAW)
Specifications Special Features
Power Efficient
Specifications Applications
Shipbuilding, Railroad, Fabrication, Pipe
Specifications Weldable Metals
All Metals
