The Dimple Flat Washer is designed for precision applications where standard washers fall short. Featuring a unique dimple for secure placement via a detent or matched hole, this washer ensures precise alignment and controlled orientation. Available in thicknesses ranging from 0.008" to 0.250" and up to 4.00" O.D., it offers customizability for various design needs. Submit your design documentation through the 'RFI' Request for Information button for tailored solutions and accurate quotes.
Product Specifications

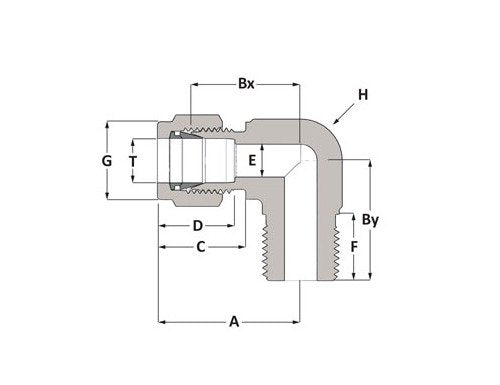

Dimensions A
39.8 mm
Dimensions Bx
29.7 mm
Dimensions By
36.8 mm
Dimensions C
22.0 mm
Dimensions D
24.4 mm
Dimensions E
11.9 mm
Dimensions F
19.3 mm
Dimensions G
1 1/16 in | 27 mm
Dimensions H
1 1/16 in | 27 mm
Dimensions P
1/2 in
Dimensions T
18 mm

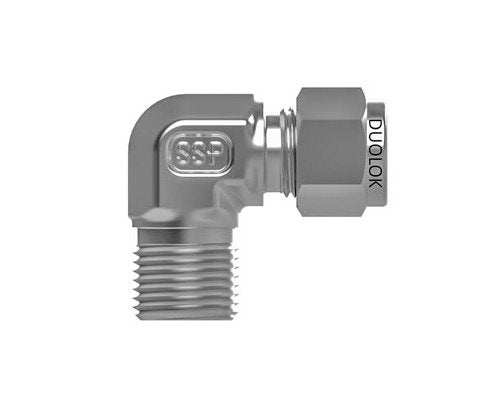

Specifications Body Material
Alloy 400
Specifications Brand Series
Duolok
Specifications Connection 1 Size
18 mm
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
Male BSPT
Specifications End Connections
TF x Male BSPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Elbow
Category 6
Duolok® Tube Fittings
