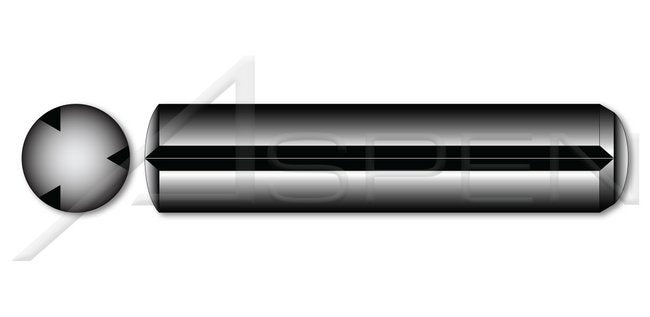

DIN 1473/ISO 8740 Metric Full Length Parallel Steel Grooved Pin

Name: DIN 1473/ISO 8740 Metric Full Length Parallel Steel Grooved Pin
Brand: Aspen Fasteners
SKU: PIN-a4d8ec
Price: 49.99 USD
Availability: OutOfStock

SKU:PIN-a4d8ec

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Grooved Pins are a type of Dowel Pin that have three grooves. Sometimes defined as flutes, these grooves create a tension that locks the pin into place when press-fit into a hole. Commonly used as locking devices, levers or pivots.

Product Specifications

Additional Information

Grooved pins are a type of solid dowel pin with grooves running axially along their surface.Full length grooves firmly hold the pin in place to prevent any spinning.Parallel grooves offer a tighter fit but require higher insertion forces.

Specifications Coating

Uncoated

Specifications Head Style

Headless

Specifications Industry Standards And Specifications

German Institute for Standardization (DIN 1473) | International Organization for Standardization (ISO 8740)

Specifications Material

Steel

Specifications Material Processes

Unhardened

Specifications Style

Full Length Parallel Groove

Specifications System Of Measurement

Metric

Specifications Tolerance

DIN 1473/ISO 8740 Metric Full Length Parallel Steel Grooved Pin
