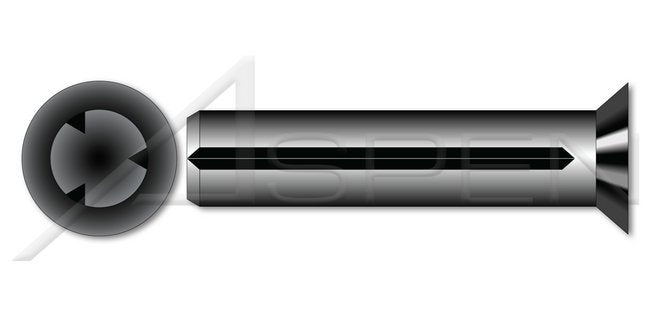

DIN 1477/ISO 8747 Metric Full Length Parallel Flat Countersunk Head Steel Grooved Pin

Name: DIN 1477/ISO 8747 Metric Full Length Parallel Flat Countersunk Head Steel Grooved Pin
Brand: Aspen Fasteners
SKU: PIN-b241e6
Price: 49.99 USD
Availability: OutOfStock

SKU:PIN-b241e6

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Grooved Pins are a type of Dowel Pin that have three grooves. Sometimes defined as flutes, these grooves create a tension that locks the pin into place when press-fit into a hole. Commonly used as locking devices, levers or pivots.

Product Specifications

Additional Information

Grooved pins are a type of solid dowel pin with grooves running axially along their surface.Full length grooves firmly hold the pin in place to prevent any spinning.Parallel grooves offer a tighter fit but require higher insertion forces.Flat countersunk head screws sit flush with the surface of the material they are inserted into.

Specifications Coating

Uncoated

Specifications Head Detail

75 Degree Countersink

Specifications Head Style

Flat Countersunk Head

Specifications Industry Standards And Specifications

German Institute for Standardization (DIN 1477) | International Organization for Standardization (ISO 8747)

Specifications Material

Steel

Specifications Material Processes

Unhardened

Specifications Style

Full Length Parallel Groove

Specifications System Of Measurement

Metric
