DIN 2353 Bulkhead Compression Fitting - B3 Ring Equipped
DIN 2353 Bulkhead Compression Fitting - B3 Ring Equipped
SKU:FIT-286980
DIN 2353 Bulkhead Compression Fitting for secure tube connections in light-duty applications. Constructed from carbon steel.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
DIN 2353 Bulkhead Compression Fitting - B3 Ring Equipped
$49.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Bulkhead Compression Fitting - B3 Ring Equipped
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

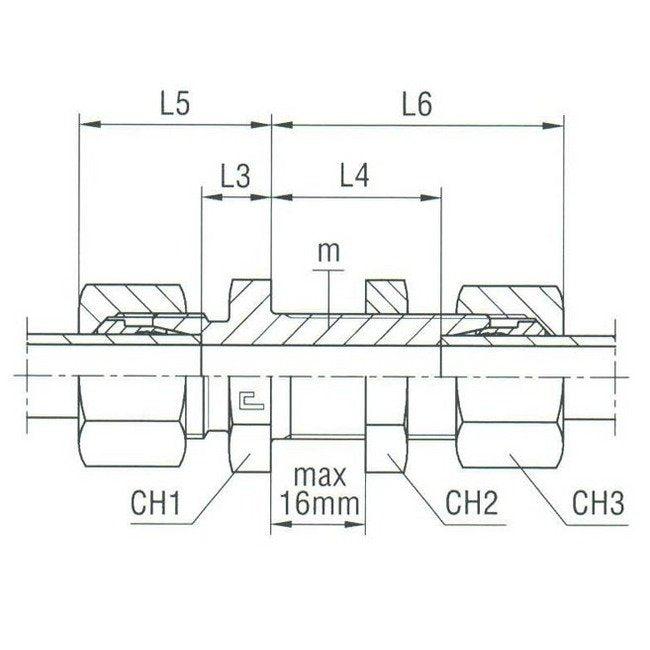

The DIN 2353 Bulkhead Compression Fitting equipped with a B3 Ring is designed for light-duty applications with a nominal operating pressure of 160 bar. Constructed from rugged carbon steel, this fitting ensures secure tube connections with a tube diameter of 28mm and a thread size of 36x2. Meeting DIN 2353 standards, it boasts precise dimensions including L3: 18.5mm, L4: 35.5mm, L5: 35mm, L6: 52mm, CH1: 41mm, CH2: 46mm, CH3: 41mm.
Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
46 mm
Specifications Ch3
41 mm
Specifications L3
18.5 mm
Specifications L4
35.5 mm
Specifications L5
35 mm
Specifications L6
52 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
36x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
28 mm
