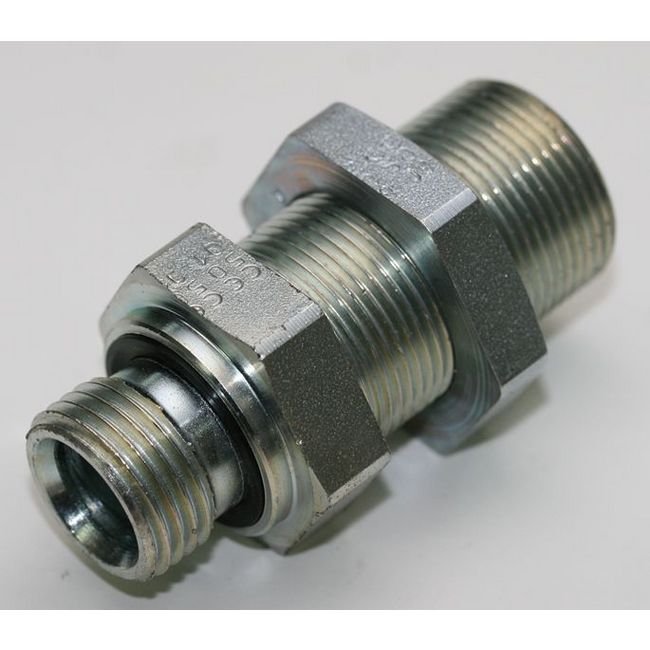

The DIN 2353 Bulkhead Connection with Elastomer Seal Thread BSP Parallel - Body Only is designed for light-duty applications with a nominal operating pressure of 315 bar. Constructed from durable carbon steel, this fitting ensures secure connections in industrial settings. With a tube diameter of 8.0 mm and threaded with 14x1.5 m and 1/4 G sizes, it meets DIN 2353 standards for reliability and performance. Ideal for straight male stud coupling setups, this component offers precision and longevity, essential for demanding environments.

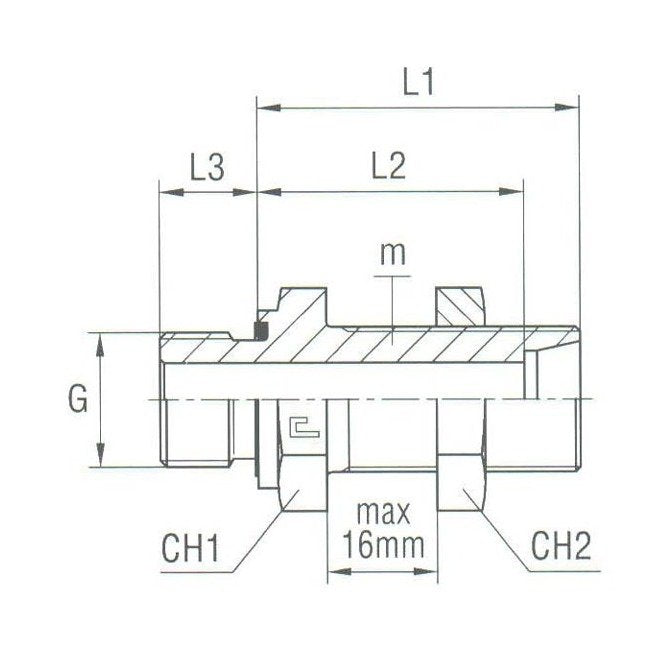

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

19.0 mm

Specifications G Thread Size

1/4

Specifications L1

41.0 mm

Specifications L2

34.0 mm

Specifications L3

12.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

14x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel
