DIN 2353 Bulkhead Connection - Carbon Steel B4 Ring, 8.0mm
DIN 2353 Bulkhead Connection - Carbon Steel B4 Ring, 8.0mm
SKU:FIT-bcfb2a
DIN 2353 Bulkhead Connection - Carbon Steel, 8.0mm, Light Duty, 315 bar, DIN 2353 Compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
DIN 2353 Bulkhead Connection - Carbon Steel B4 Ring, 8.0mm
$29.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Bulkhead Connection - Carbon Steel B4 Ring, 8.0mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN 2353 Bulkhead Connection with Equipped B4 Ring is designed for light-duty applications, featuring a durable carbon steel construction. With a tube diameter of 8.0mm and a nominal operating pressure of 315 bar, this compression fitting ensures reliable performance under pressure. Meeting DIN 2353 standards, this Bulkhead Union is precision-engineered for secure and leak-free connections, making it ideal for various fluid system installations in industrial settings.

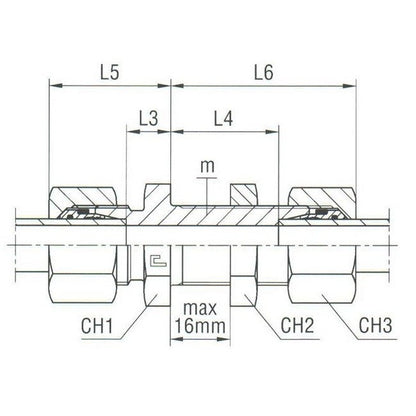

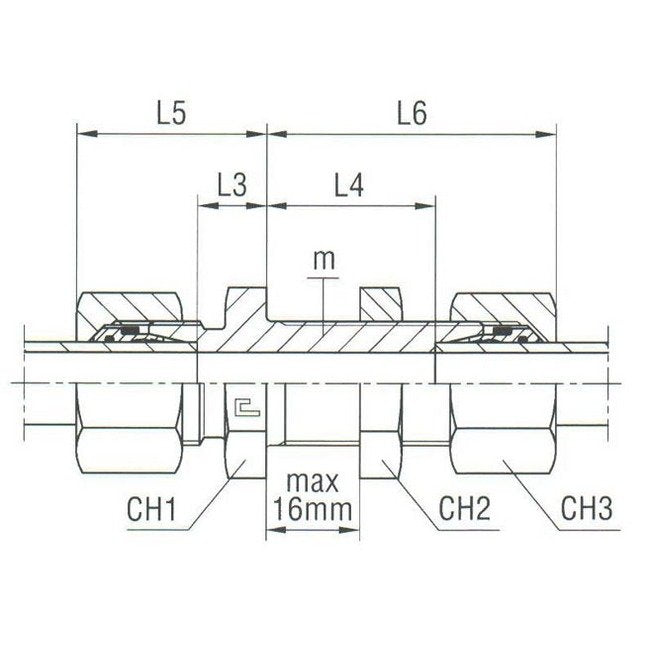

Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
19.0 mm
Specifications Ch3
17 mm
Specifications L3
8.0 mm
Specifications L4
27 mm
Specifications L5
23 mm
Specifications L6
42 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
14x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
8.0 mm
