DIN 2353 Bulkhead Connection with Elastomer Seal BSP Parallel - Body Only

Name: DIN 2353 Bulkhead Connection with Elastomer Seal BSP Parallel - Body Only
Brand: World Wide Metric, Inc.
SKU: FIT-58f916
Price: 14.99 USD
Availability: OutOfStock

SKU:FIT-58f916

Get the DIN 2353 Bulkhead Connection for reliable tube connections at 315 bar pressure. DIN 2353 compliant for quality assurance.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

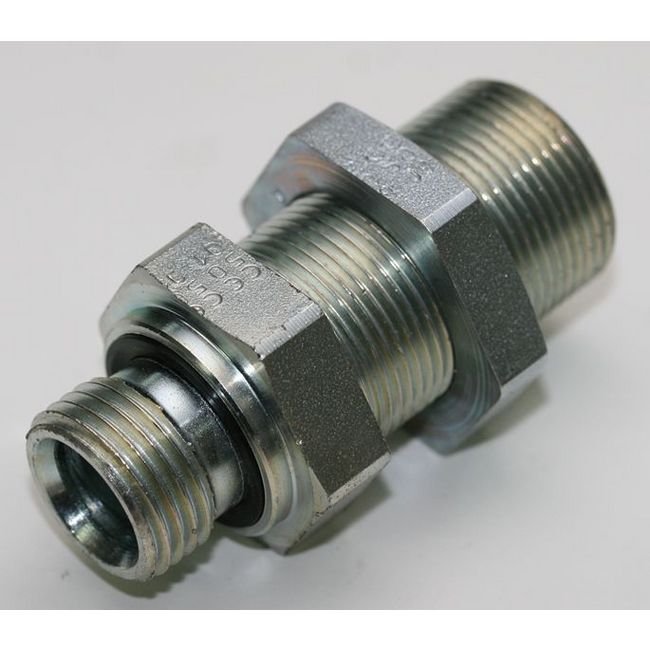

The DIN 2353 Bulkhead Connection with Elastomer Seal Thread BSP Parallel - Body Only is designed for light-duty applications with a nominal operating pressure of 315 bar. Constructed from durable carbon steel, this fitting ensures secure and reliable tube connections. With precise specifications including a tube diameter of 12.0 mm and threaded sizes of M18x1.5 and G 3/8, it complies with DIN 2353 standards for quality and performance.

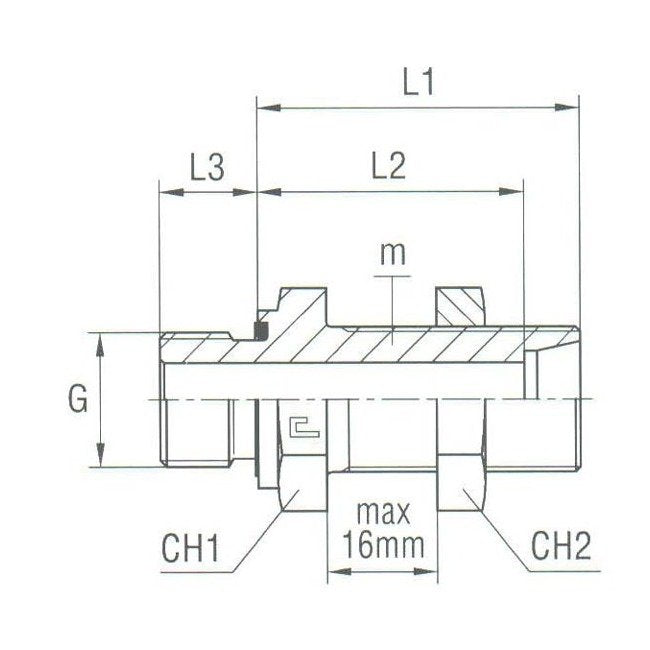

Product Specifications

Specifications Ch1

24 mm

Specifications Ch2

24 mm

Specifications G Thread Size

3/8

Specifications L1

44.5 mm

Specifications L2

37.5 mm

Specifications L3

12.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

18x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm
