DIN 2353 Bulkhead Elbow Body, Carbon Steel, 8.0 mm
DIN 2353 Bulkhead Elbow Body, Carbon Steel, 8.0 mm
SKU:FIT-ecedc7
DIN 2353 Bulkhead Elbow - Carbon Steel, 8.0mm, Light Duty, 315 bar
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
DIN 2353 Bulkhead Elbow Body, Carbon Steel, 8.0 mm
$34.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Bulkhead Elbow Body, Carbon Steel, 8.0 mm
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

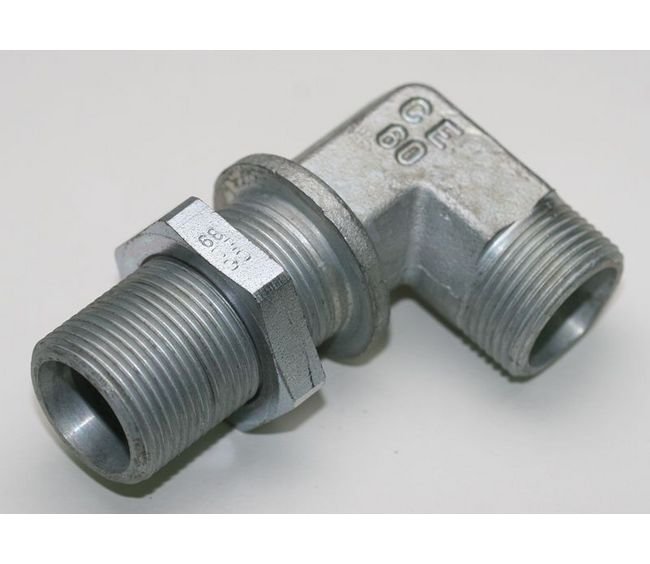

The Bulkhead Elbow - Body Only is crafted from durable Carbon Steel, suitable for light-duty applications. With a tube diameter of 8.0 mm and meeting DIN 2353 standards, this fitting ensures reliable performance under a nominal operating pressure of 315 bar. Featuring precise dimensions and quality construction, it guarantees secure connections in various industrial settings.
Ready to Grow Without Cash Flow Constraints?

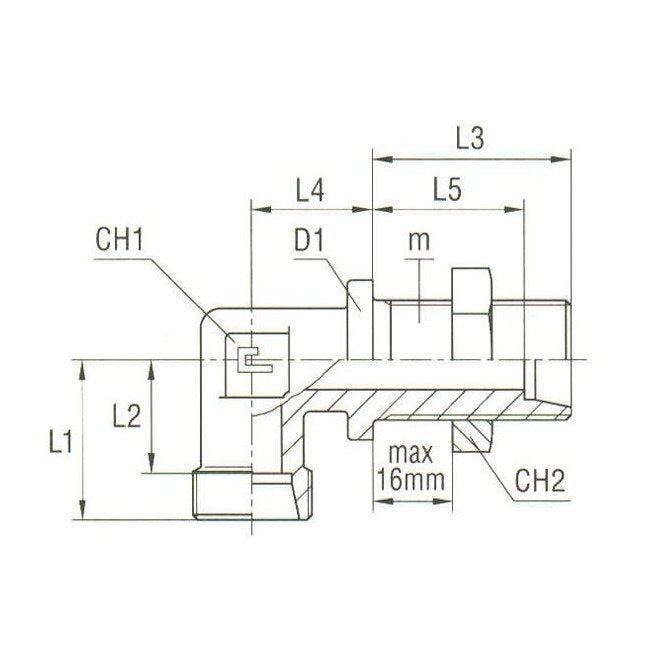

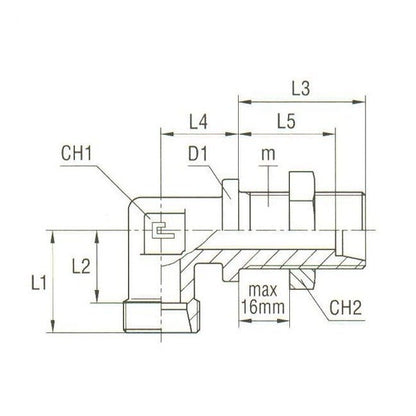

Product Specifications
Specifications Ch1
12 mm
Specifications Ch2
19.0 mm
Specifications D1
19 mm
Specifications L1
21.0 mm
Specifications L2
14.0 mm
Specifications L3
34.0 mm
Specifications L4
17 mm
Specifications L5
27 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
14x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
8.0 mm
