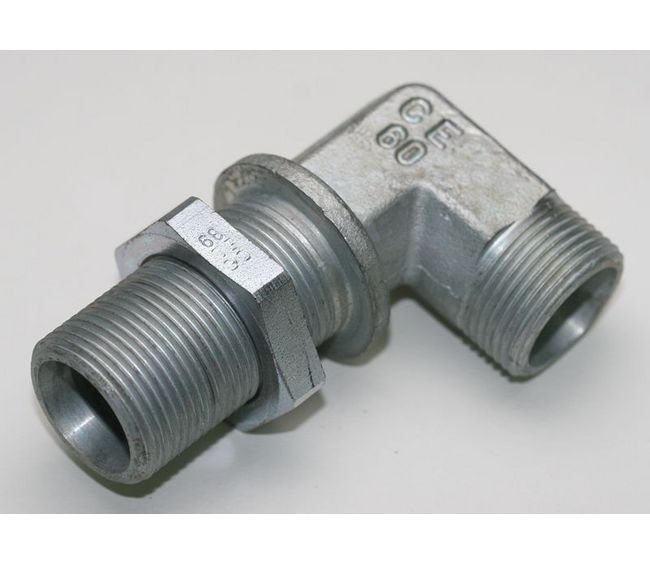

DIN 2353 Bulkhead Elbow - Carbon Steel - 10.0mm Tube - 16x1.5 Thread - 315 Bar

Name: DIN 2353 Bulkhead Elbow - Carbon Steel - 10.0mm Tube - 16x1.5 Thread - 315 Bar
Brand: World Wide Metric, Inc.
SKU: FIT-85de22
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-85de22

DIN 2353 Bulkhead Elbow - Carbon Steel - 10.0mm Tube - 16x1.5 Thread - 315 Bar. Reliable and durable for light-duty applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

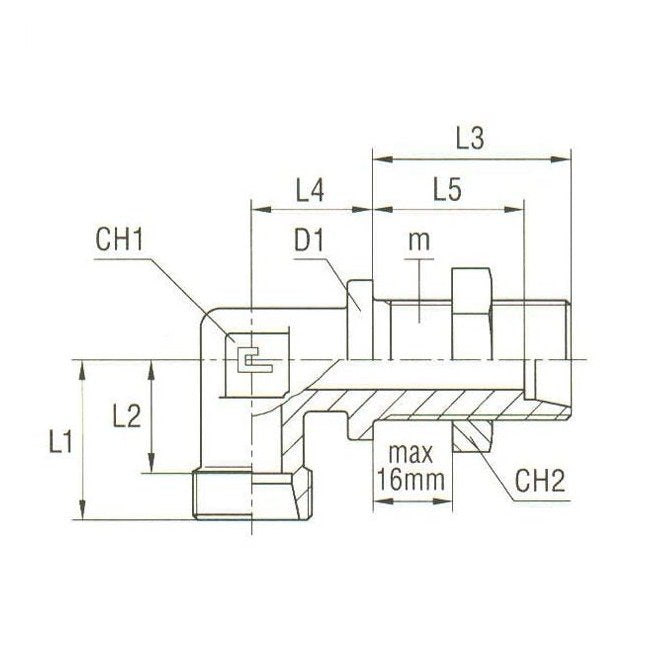

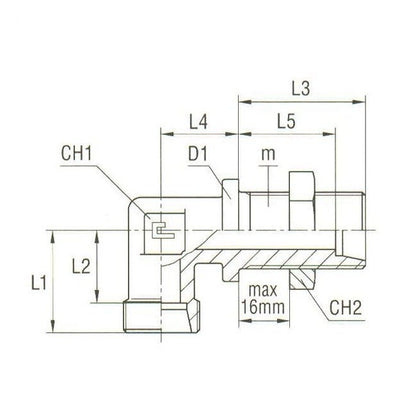

The DIN 2353 Bulkhead Elbow - Body Only is crafted from durable carbon steel, ensuring reliability in light-duty applications. With a tube diameter of 10.0mm and a 16x1.5 thread size, this fitting is designed for optimal performance at a nominal operating pressure of 315 bar. Measuring at L1: 22mm, L2: 15mm, L3: 35.0mm, L4: 18mm, L5: 28mm, D1: 22mm, CH1: 14mm, and CH2: 22mm, it meets stringent DIN 2353 standards.

Product Specifications

Specifications Ch1

14 mm

Specifications Ch2

22 mm

Specifications D1

22 mm

Specifications L1

22 mm

Specifications L2

15 mm

Specifications L3

35.0 mm

Specifications L4

18 mm

Specifications L5

28 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

16x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm
