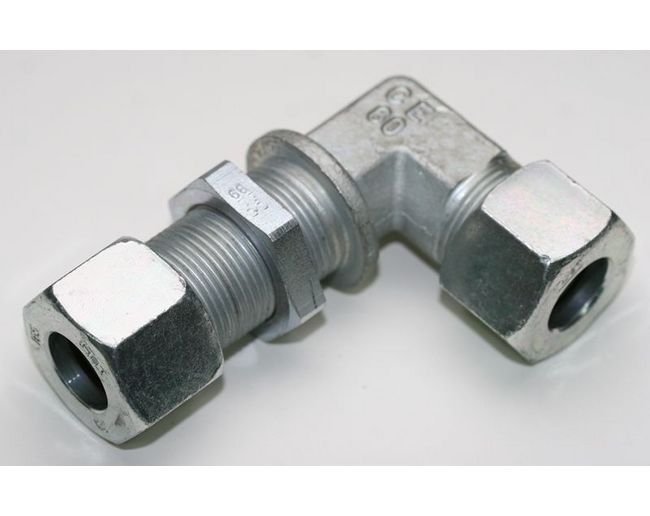

DIN 2353 Bulkhead Elbow - Carbon Steel, Equipped B4 Ring
DIN 2353 Bulkhead Elbow - Carbon Steel, Equipped B4 Ring
SKU:FIT-1dc4e7
DIN 2353 Bulkhead Elbow - Carbon Steel, Light Duty, 12.0mm tube diameter, 315 bar, DIN 2353 compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
DIN 2353 Bulkhead Elbow - Carbon Steel, Equipped B4 Ring
$29.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Bulkhead Elbow - Carbon Steel, Equipped B4 Ring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

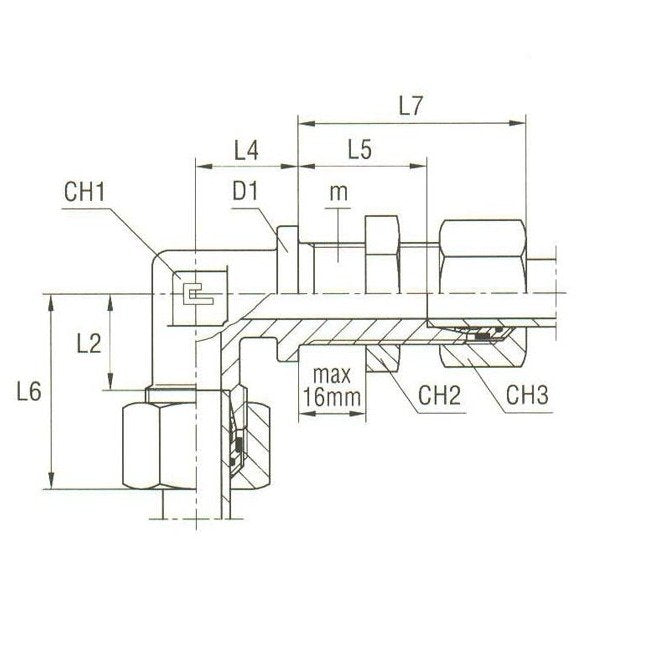

The DIN 2353 Bulkhead Elbow is a reliable light-duty fitting made of carbon steel, designed for compression applications. With a tube diameter of 12.0mm and a thread size of 18x1.5, this fitting can handle a nominal operating pressure of 315 bar. Its compact design, with dimensions L2=17.0mm, L4=20mm, L5=29mm, L6=24mm, L7=44mm, D1=24mm, CH1=17.0mm, CH2=24mm, and CH3=22mm, ensures seamless integration into various systems. Compliant with DIN 2353 standards, this fitting guarantees high performance and durability in demanding environments.
Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
24 mm
Specifications Ch3
22 mm
Specifications D1
24 mm
Specifications L2
17.0 mm
Specifications L4
20 mm
Specifications L5
29 mm
Specifications L6
24 mm
Specifications L7
44 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
