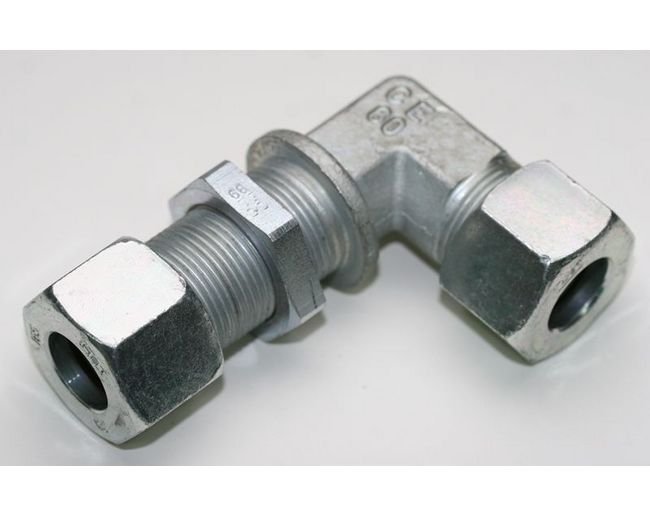

DIN 2353 Bulkhead Elbow with Equipped B3 Ring

Name: DIN 2353 Bulkhead Elbow with Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-4a8520
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-4a8520

Durable DIN 2353 Bulkhead Elbow for light duty applications, meeting DIN 2353 standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

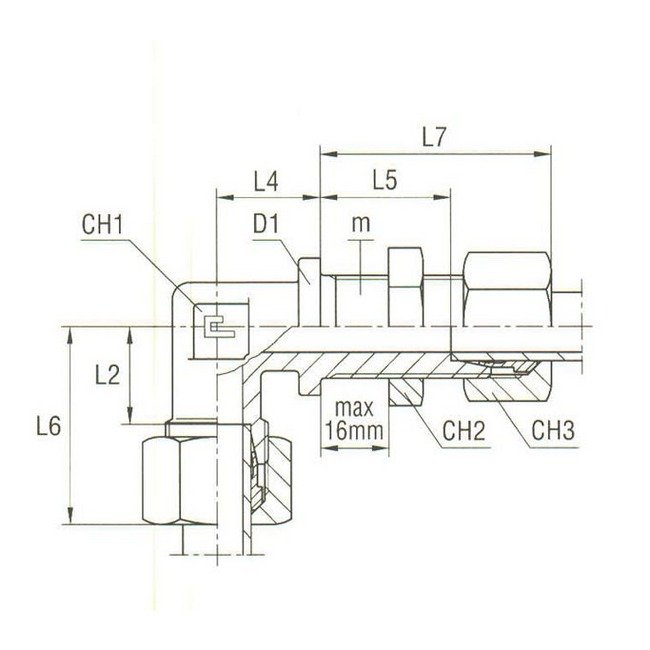

The DIN 2353 Bulkhead Elbow with Equipped B3 Ring is designed for light duty applications, constructed from durable carbon steel. With a tube diameter of 35.0mm and a thread size of 45x2, this fitting operates at a nominal pressure of 160 bar. Meeting DIN 2353 standards, it assures reliability and performance. The L2, L4, L5, L6, L7 measurements provide precise fit, while the CH1, CH2, CH3 dimensions ensure secure connections. Ideal for equal fittings in compression applications.

Product Specifications

Specifications Ch1

41 mm

Specifications Ch2

55 mm

Specifications Ch3

50 mm

Specifications D1

50 mm

Specifications L2

34.5 mm

Specifications L4

39.0 mm

Specifications L5

36.5 mm

Specifications L6

45 mm

Specifications L7

58 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

45x2

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

35.0 mm
