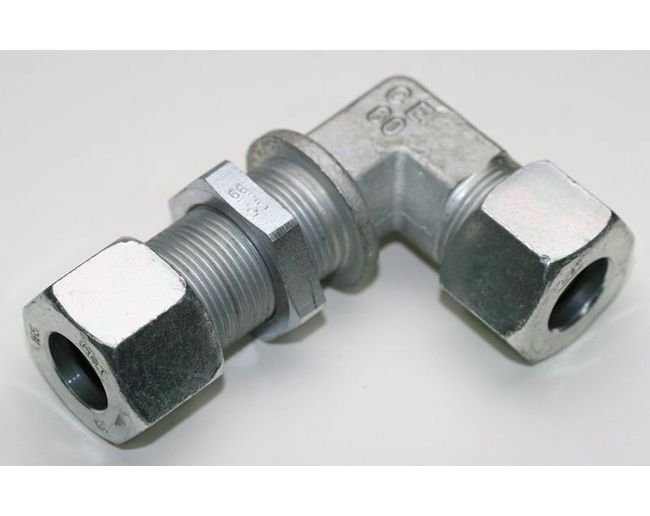

DIN 2353 Bulkhead Elbow with Equipped B3 Ring - Carbon Steel, 8.0mm

Name: DIN 2353 Bulkhead Elbow with Equipped B3 Ring - Carbon Steel, 8.0mm
Brand: World Wide Metric, Inc.
SKU: FIT-f6e14c
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-f6e14c

DIN 2353 Bulkhead Elbow with Equipped B3 Ring - Carbon Steel, 8.0mm. Ideal for light-duty applications. Meets DIN 2353 standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

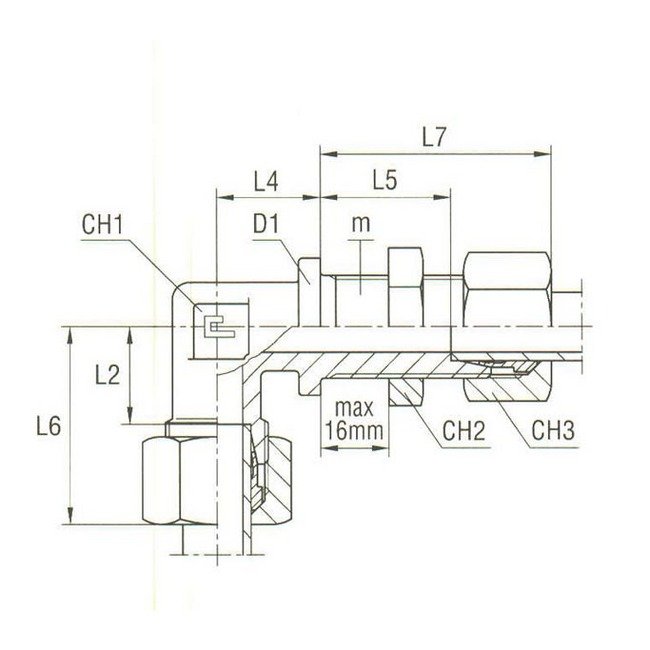

The DIN 2353 Bulkhead Elbow with Equipped B3 Ring is designed for light-duty applications, crafted from sturdy carbon steel. With a tube diameter of 8.0mm and a thread size of 14x1.5, this fitting operates efficiently at a nominal pressure of 315 bar. Meeting DIN 2353 standards, it features precise dimensions including L2: 14.0mm, L4: 17mm, L5: 27mm, L6: 21mm, L7: 42mm, D1: 19mm, CH1: 12mm, CH2: 19.0mm, and CH3: 17mm, ensuring reliable performance in various industrial settings.

Product Specifications

Specifications Ch1

12 mm

Specifications Ch2

19.0 mm

Specifications Ch3

17 mm

Specifications D1

19 mm

Specifications L2

14.0 mm

Specifications L4

17 mm

Specifications L5

27 mm

Specifications L6

21 mm

Specifications L7

42 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

14x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm
