DIN 2353 Bulkhead Elbow with Equipped B3 Ring - Heavy Duty Carbon Steel, 6.0mm Tube Diameter
DIN 2353 Bulkhead Elbow with Equipped B3 Ring - Heavy Duty Carbon Steel, 6.0mm Tube Diameter
SKU:FIT-b02586
DIN 2353 Bulkhead Elbow - Heavy Duty Carbon Steel, 6.0mm Tube, 630 bar, DIN 2353 Standards
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
DIN 2353 Bulkhead Elbow with Equipped B3 Ring - Heavy Duty Carbon Steel, 6.0mm Tube Diameter
$34.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Bulkhead Elbow with Equipped B3 Ring - Heavy Duty Carbon Steel, 6.0mm Tube Diameter
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN 2353 Bulkhead Elbow with Equipped B3 Ring is a heavy-duty fitting made of carbon steel, designed for precise compression applications. With a tube diameter of 6.0mm and a nominal operating pressure of 630 bar, this fitting ensures reliable performance in demanding environments. Meeting DIN 2353 standards, it offers exceptional durability and leak-tight connections, making it ideal for industrial and institutional hydraulic systems.

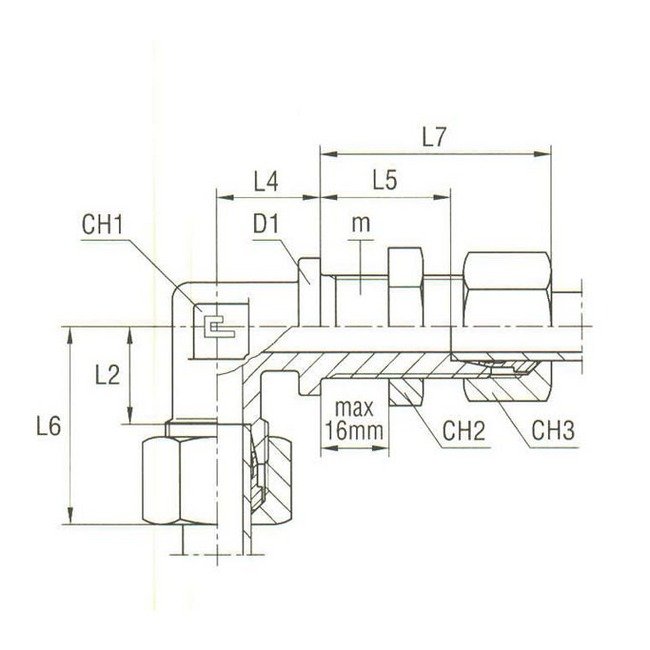

Product Specifications
Specifications Ch1
12 mm
Specifications Ch2
19.0 mm
Specifications Ch3
17 mm
Specifications D1
19 mm
Specifications L2
16.0 mm
Specifications L4
17 mm
Specifications L5
29 mm
Specifications L6
23 mm
Specifications L7
44 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
14x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
