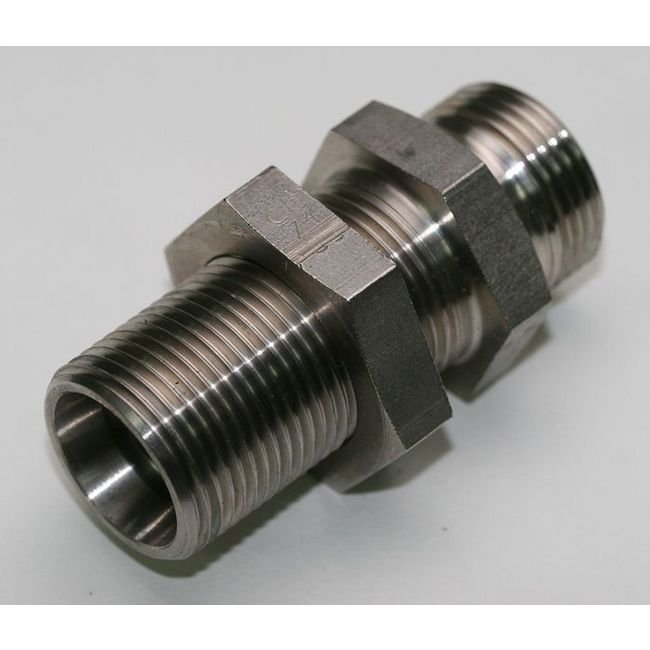

DIN 2353 Bulkhead Union Body - Carbon Steel 12.0mm

Name: DIN 2353 Bulkhead Union Body - Carbon Steel 12.0mm
Brand: World Wide Metric, Inc.
SKU: FIT-a108fc
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-a108fc

DIN 2353 Bulkhead Union Body - Carbon Steel, 12.0mm tube diameter, 315 bar pressure

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

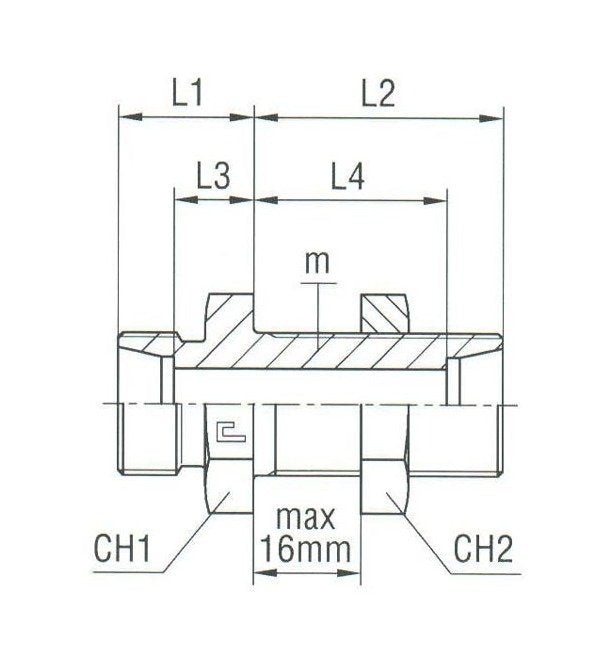

The DIN 2353 Bulkhead Union Body, constructed from robust Carbon Steel, is designed for light-duty applications with a Nominal Operating Pressure of 315 bar. Featuring a precise tube diameter of 12.0mm and thread size of 18x1.5, this fitting ensures reliable and efficient compression connections. Measuring L1: 17.0mm, L2: 36.0mm, L3: 10mm, and L4: 29mm, it complies with DIN 2353 standards, providing durability and performance for various industrial settings.

Product Specifications

Specifications Ch1

24 mm

Specifications Ch2

24 mm

Specifications L1

17.0 mm

Specifications L2

36.0 mm

Specifications L3

10 mm

Specifications L4

29 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

18x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm
