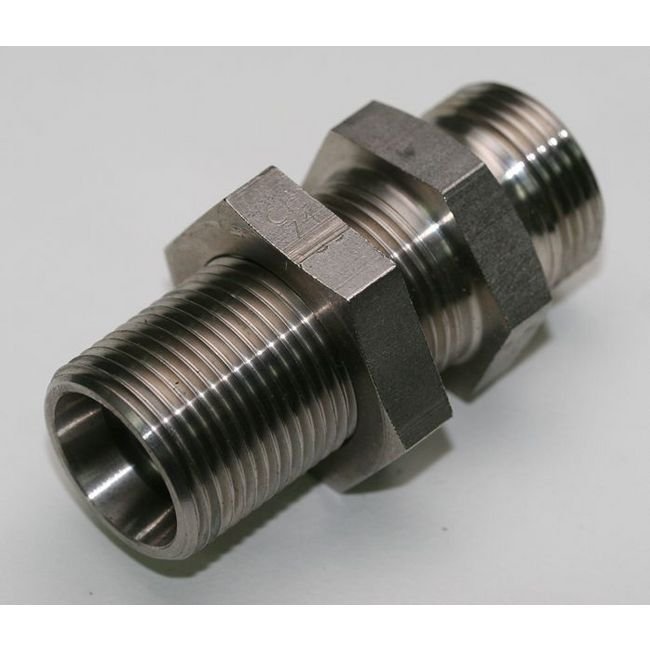

DIN 2353 Bulkhead Union Body, Carbon Steel, 22mm Tube Diameter
DIN 2353 Bulkhead Union Body, Carbon Steel, 22mm Tube Diameter
SKU:FIT-f120b6
High-quality DIN 2353 Bulkhead Union Body for 22mm tubes - Light Duty, Carbon Steel, 160 bar
Regular price
$27.99
Regular price
Sale price
$27.99
Unit price
per
Initiate Order
DIN 2353 Bulkhead Union Body, Carbon Steel, 22mm Tube Diameter
$27.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Bulkhead Union Body, Carbon Steel, 22mm Tube Diameter
$27.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

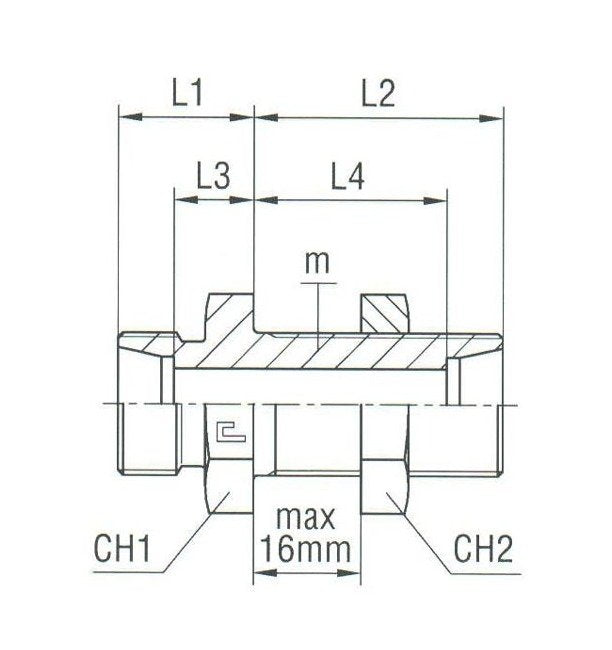

The Bulkhead Connection Body Only is a durable fitting designed for light-duty applications, constructed with high-quality carbon steel. With a tube diameter of 22mm and a thread size of 30x2, this fitting ensures a secure and leak-free connection. Meeting DIN 2353 standards, it offers a nominal operating pressure of 160 bar. The precise dimensions, including L1, L2, L3, L4, CH1, and CH2, guarantee compatibility and reliability in various industrial settings.
Product Specifications
Specifications Ch1
36 mm
Specifications Ch2
41 mm
Specifications L1
24.0 mm
Specifications L2
42 mm
Specifications L3
16.5 mm
Specifications L4
34.5 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
30x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
22 mm
