DIN 2353 Bulkhead Union Body, Carbon Steel, 28mm Tube, Light Duty, 160 Bar

Name: DIN 2353 Bulkhead Union Body, Carbon Steel, 28mm Tube, Light Duty, 160 Bar
Brand: World Wide Metric, Inc.
SKU: FIT-a0bee5
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-a0bee5

Secure connection with this DIN 2353 Bulkhead Union Body, crafted from durable carbon steel for light-duty applications. Meets DIN 2353 standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

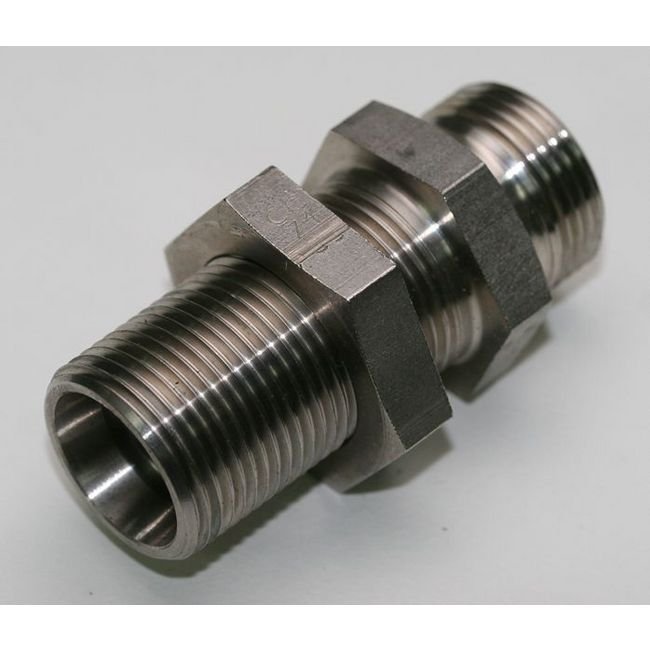

The Bulkhead Connection Body is a crucial component for creating secure connections in hydraulic systems. Crafted from durable carbon steel, this body ensures reliable performance under light-duty pressure conditions of up to 160 bar. With a tube diameter of 28mm and precise thread size of 36x2, this body offers a perfect fit for seamless integration. Meeting DIN 2353 standards, it guarantees quality and compatibility for your compression fitting needs.

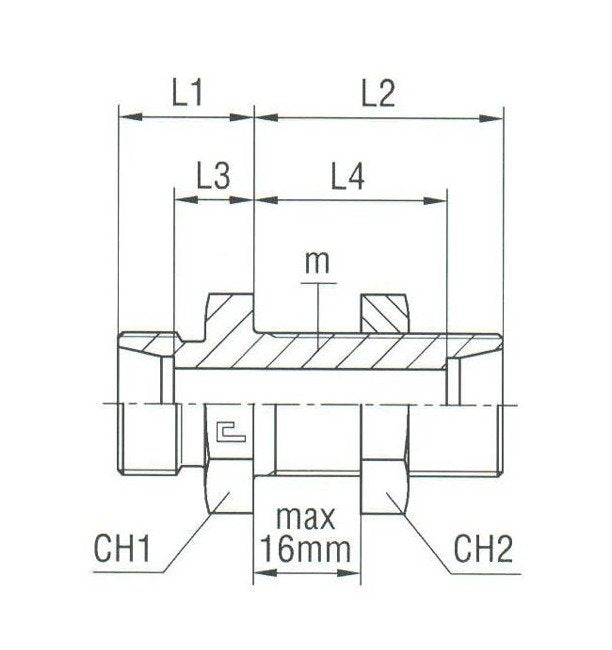

Product Specifications

Specifications Ch1

41 mm

Specifications Ch2

46 mm

Specifications L1

26.0 mm

Specifications L2

43.0 mm

Specifications L3

18.5 mm

Specifications L4

35.5 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

36x2

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

28 mm
