DIN 2353 Bulkhead Union: Carbon Steel 22mm B3 Ring
DIN 2353 Bulkhead Union: Carbon Steel 22mm B3 Ring
SKU:FIT-700af7
High-quality DIN 2353 Bulkhead Union - Carbon Steel, 22mm, Light Duty, 160 bar, DIN 2353 Compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
DIN 2353 Bulkhead Union: Carbon Steel 22mm B3 Ring
$29.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Bulkhead Union: Carbon Steel 22mm B3 Ring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

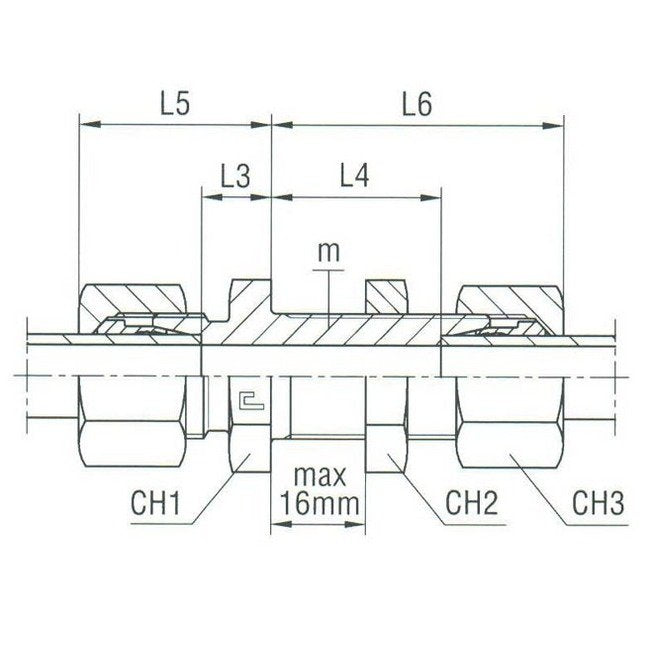

The Bulkhead Connection - Equipped B3 Ring is a top-quality compression fitting designed for light-duty applications. Crafted from durable carbon steel, it ensures reliable performance with a nominal operating pressure of 160 bar. Meeting DIN 2353 standards, this fitting boasts precise dimensions including a 30x2 thread size, making it ideal for secure tube connections. With dimensions of L3: 16.5mm, L4: 34.5mm, L5: 33mm, L6: 51mm, CH1: 36mm, CH2: 41mm, and CH3: 36mm, this bulkhead union is engineered for efficiency and longevity.
Product Specifications
Specifications Ch1
36 mm
Specifications Ch2
41 mm
Specifications Ch3
36 mm
Specifications L3
16.5 mm
Specifications L4
34.5 mm
Specifications L5
33 mm
Specifications L6
51 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
30x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
22 mm
