DIN 2353 Bulkhead Union - Carbon Steel, 35.0mm Tube Diameter, Light Duty, 160 Bar
DIN 2353 Bulkhead Union - Carbon Steel, 35.0mm Tube Diameter, Light Duty, 160 Bar
SKU:FIT-767c24
DIN 2353 Bulkhead Union - Carbon Steel, 35.0mm Tube Diameter, Light Duty, 160 Bar. Reliable connection fitting for industrial use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
DIN 2353 Bulkhead Union - Carbon Steel, 35.0mm Tube Diameter, Light Duty, 160 Bar
$29.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Bulkhead Union - Carbon Steel, 35.0mm Tube Diameter, Light Duty, 160 Bar
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

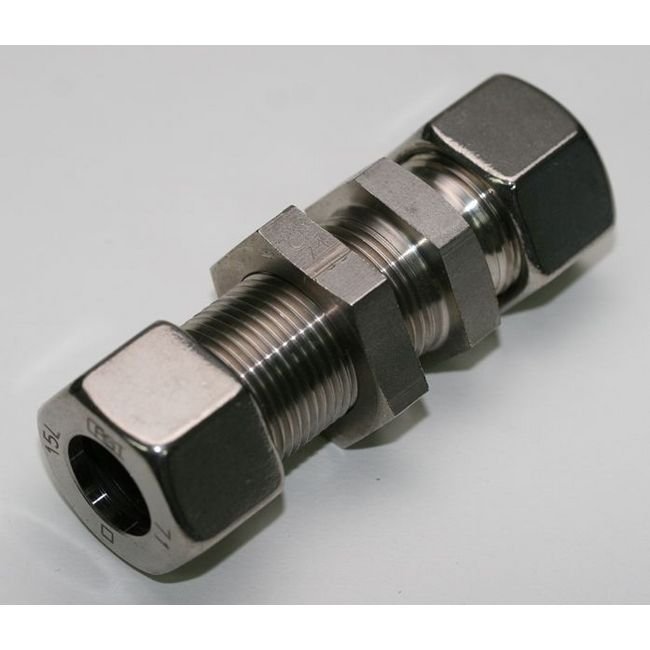

The DIN 2353 Bulkhead Union features a durable construction of Carbon Steel, designed for light-duty applications with a nominal operating pressure of 160 bar. With precise specifications including a 35.0mm Tube Diameter and 45x2 Thread Size, this fitting ensures reliable connections in various industrial settings. Compliant with DIN 2353 standards, it offers optimal performance and longevity, making it a top choice for fluid systems.

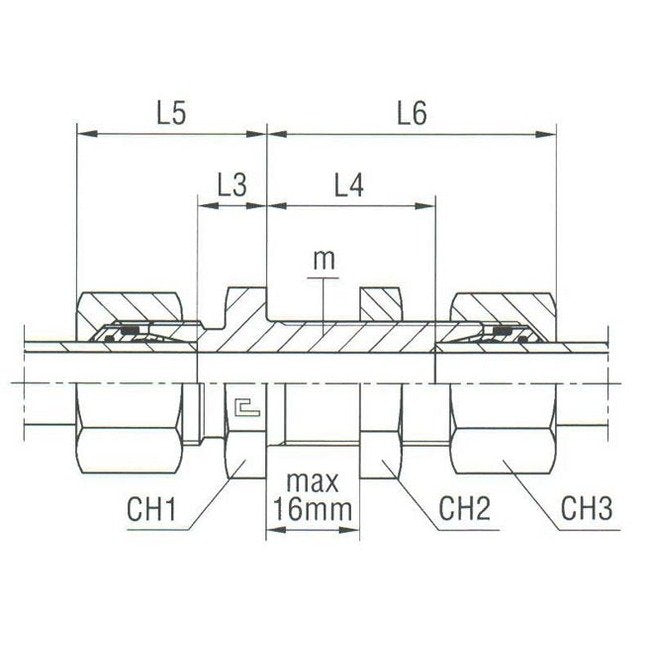

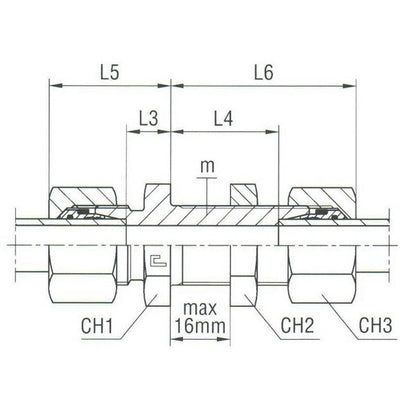

Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
55 mm
Specifications Ch3
50 mm
Specifications L3
18.5 mm
Specifications L4
36.5 mm
Specifications L5
40 mm
Specifications L6
58 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
45x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
35.0 mm
