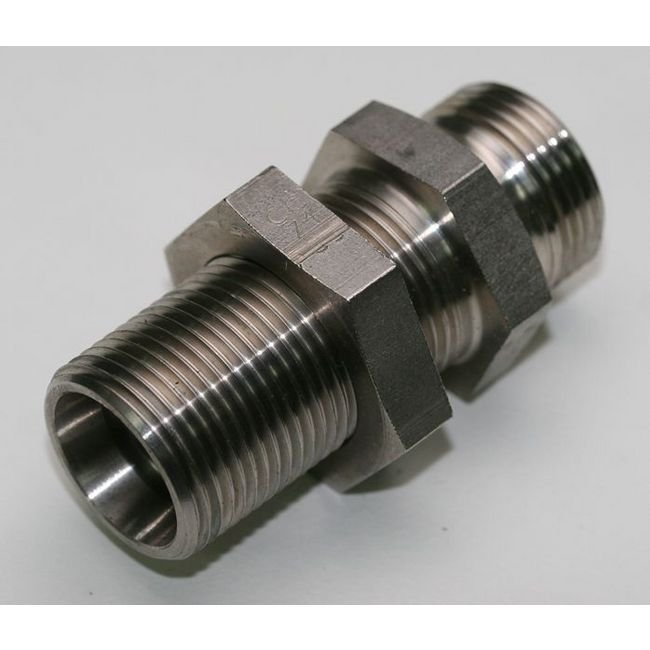

DIN 2353 Bulkhead Union - Carbon Steel Body
DIN 2353 Bulkhead Union - Carbon Steel Body
SKU:FIT-b9f4af
High-quality Carbon Steel Bulkhead Union for secure, precise tube connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
DIN 2353 Bulkhead Union - Carbon Steel Body
$24.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Bulkhead Union - Carbon Steel Body
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

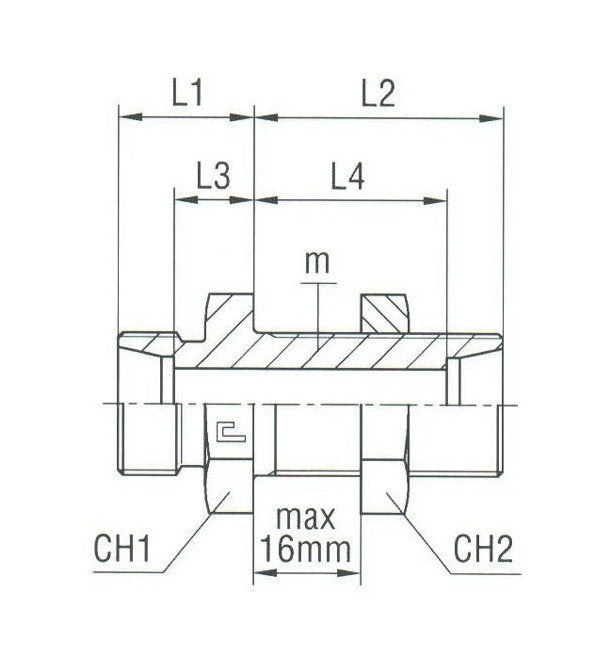

The DIN 2353 Bulkhead Union Body provides a reliable and durable light-duty connection solution. Constructed from high-quality carbon steel, this fitting ensures secure tube connections with a nominal operating pressure of 160 bar. Meeting DIN 2353 standards, it offers precise fittings for applications requiring a 35.0 mm tube diameter with a 45x2 thread size. With dimensions L1: 29.0 mm, L2: 47 mm, L3: 18.5 mm, L4: 36.5 mm, CH1: 50 mm, and CH2: 55 mm, this Bulkhead Union Body is designed for efficiency and performance.
Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
55 mm
Specifications L1
29.0 mm
Specifications L2
47 mm
Specifications L3
18.5 mm
Specifications L4
36.5 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
45x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
35.0 mm
