DIN 2353 Bulkhead Union Compression Fitting - Carbon Steel, 15.0mm, 22x1.5

Name: DIN 2353 Bulkhead Union Compression Fitting - Carbon Steel, 15.0mm, 22x1.5
Brand: World Wide Metric, Inc.
SKU: FIT-3e3ce9
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-3e3ce9

High-quality Carbon Steel Bulkhead Union Compression Fitting - DIN 2353 standard, 15.0mm tube diameter, 315 bar pressure

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

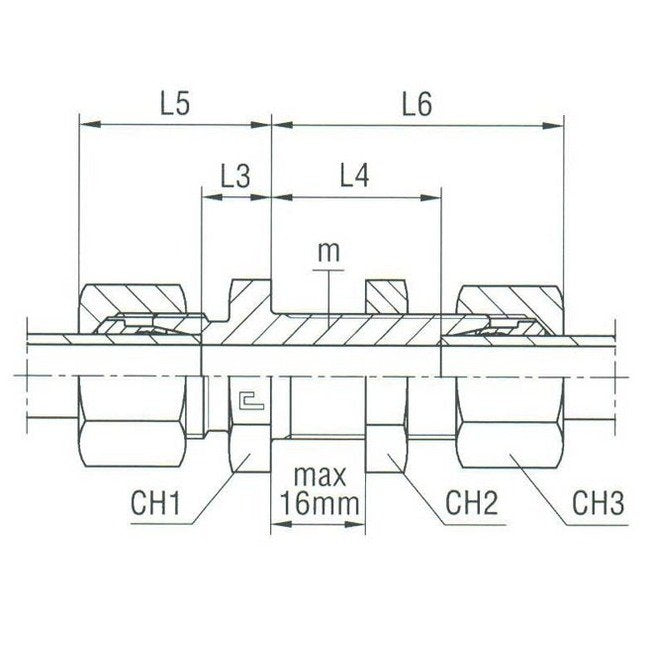

The Bulkhead Connection - Equipped B3 Ring fitting offers a robust solution for light-duty applications. Constructed from high-quality carbon steel, this fitting ensures durability and reliability. With a tube diameter of 15.0mm and a nominal operating pressure of 315 bar, it meets DIN 2353 standards. The compact design features precise dimensions including L3: 12.0mm, L4: 31mm, L5: 27mm, L6: 46mm, CH1: 27mm, CH2: 30mm, and CH3: 27mm, making it ideal for various industrial settings.

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

30 mm

Specifications Ch3

27 mm

Specifications L3

12.0 mm

Specifications L4

31 mm

Specifications L5

27 mm

Specifications L6

46 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

15.0 mm
