DIN 2353 Bulkhead Union Connection - Equipped B3 Ring
DIN 2353 Bulkhead Union Connection - Equipped B3 Ring
SKU:FIT-ddd047
Reliable DIN 2353 Bulkhead Union Connection for light-duty applications, ensuring secure fittings for systems. Meet DIN standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
DIN 2353 Bulkhead Union Connection - Equipped B3 Ring
$24.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Bulkhead Union Connection - Equipped B3 Ring
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

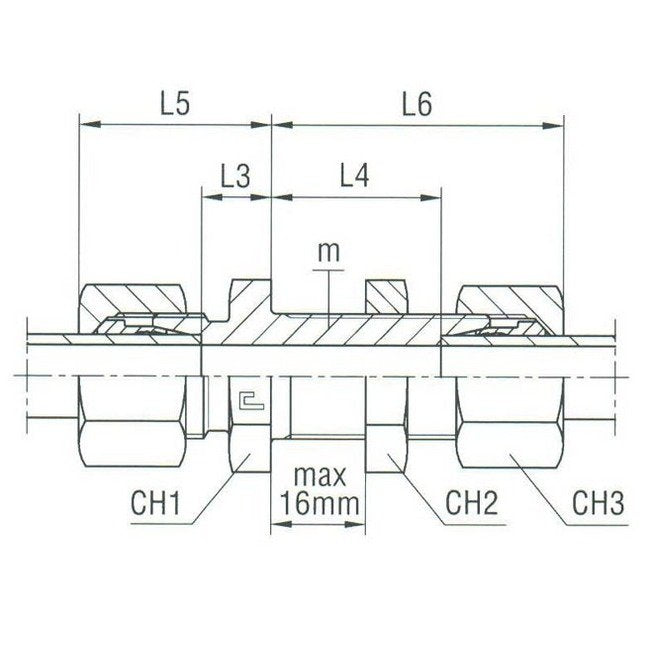

The DIN 2353 Bulkhead Union Connection with Equipped B3 Ring is a durable solution for light-duty applications, crafted from high-quality carbon steel. With a tube diameter of 18.0 mm and a nominal operating pressure of 315 bar, this fitting ensures reliable performance. Meeting DIN 2353 standards, it features precise dimensions including L3: 13.5 mm, L4: 32.5 mm, L5: 30 mm, L6: 49 mm, CH1: 32 mm, CH2: 36 mm, and CH3: 32 mm. Ideal for secure bulkhead connections in various systems.
Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
36 mm
Specifications Ch3
32 mm
Specifications L3
13.5 mm
Specifications L4
32.5 mm
Specifications L5
30 mm
Specifications L6
49 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
26x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
18.0 mm
