DIN 2353 Bulkhead Union Equipped B3 Ring - Carbon Steel, 6.0mm Tube, 315 Bar Pressure
DIN 2353 Bulkhead Union Equipped B3 Ring - Carbon Steel, 6.0mm Tube, 315 Bar Pressure
SKU:FIT-b8dbb9
High-quality DIN 2353 Bulkhead Union Equipped B3 Ring for secure and reliable 6.0mm tube connections under 315 bar pressure.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
DIN 2353 Bulkhead Union Equipped B3 Ring - Carbon Steel, 6.0mm Tube, 315 Bar Pressure
$24.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Bulkhead Union Equipped B3 Ring - Carbon Steel, 6.0mm Tube, 315 Bar Pressure
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN 2353 Bulkhead Union Equipped B3 Ring is a robust carbon steel fitting designed for light-duty applications with a tube diameter of 6.0mm. It operates under a nominal pressure of 315 bar and meets DIN 2353 standards. With precise dimensions and high-quality materials, this fitting ensures secure connections and reliable performance, making it ideal for industrial and institutional use.

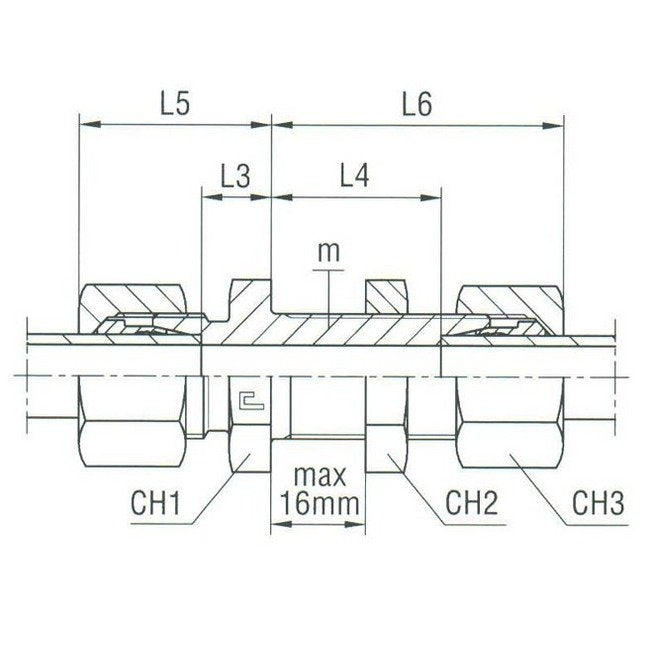

Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
17.0 mm
Specifications Ch3
14 mm
Specifications L3
7 mm
Specifications L4
27 mm
Specifications L5
22 mm
Specifications L6
42 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
12x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
