DIN 2353 Bulkhead Union - Equipped B3 Ring Compression Fitting
DIN 2353 Bulkhead Union - Equipped B3 Ring Compression Fitting
SKU:FIT-562a41
Durable DIN 2353 Bulkhead Union Compression Fitting for Light-Duty Applications
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
DIN 2353 Bulkhead Union - Equipped B3 Ring Compression Fitting
$24.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Bulkhead Union - Equipped B3 Ring Compression Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN 2353 Bulkhead Union with Equipped B3 Ring Compression Fitting is designed for light-duty applications, constructed with durable carbon steel. Featuring a tube diameter of 35.0mm and a thread size of 45x2, this fitting ensures a secure and reliable connection. With a nominal operating pressure of 160 bar, it meets DIN 2353 standards, making it a reliable choice for various industrial applications.

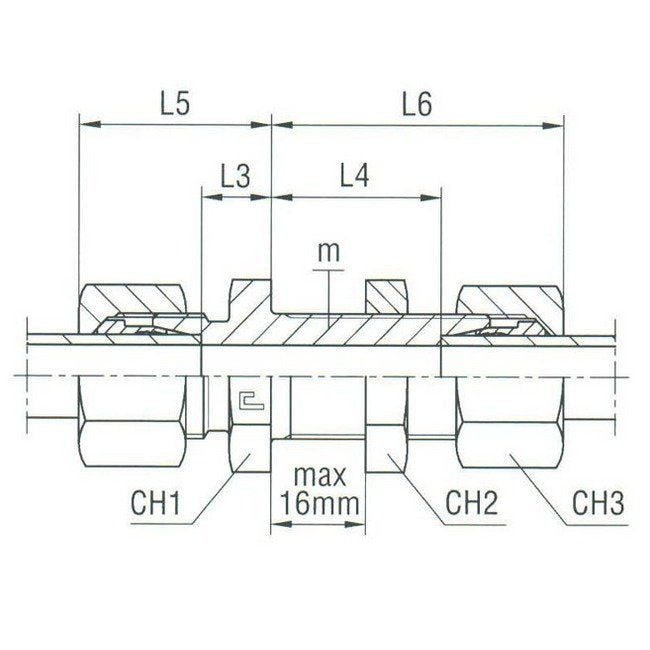

Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
55 mm
Specifications Ch3
50 mm
Specifications L3
18.5 mm
Specifications L4
36.5 mm
Specifications L5
40 mm
Specifications L6
58 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
45x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
35.0 mm
