DIN 2353 Bulkhead Union with Equipped B3 Ring
DIN 2353 Bulkhead Union with Equipped B3 Ring
SKU:FIT-9a660b
Durable DIN 2353 Bulkhead Union with B3 Ring, ideal for light-duty applications. Meet DIN 2353 standards.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
DIN 2353 Bulkhead Union with Equipped B3 Ring
$25.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Bulkhead Union with Equipped B3 Ring
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

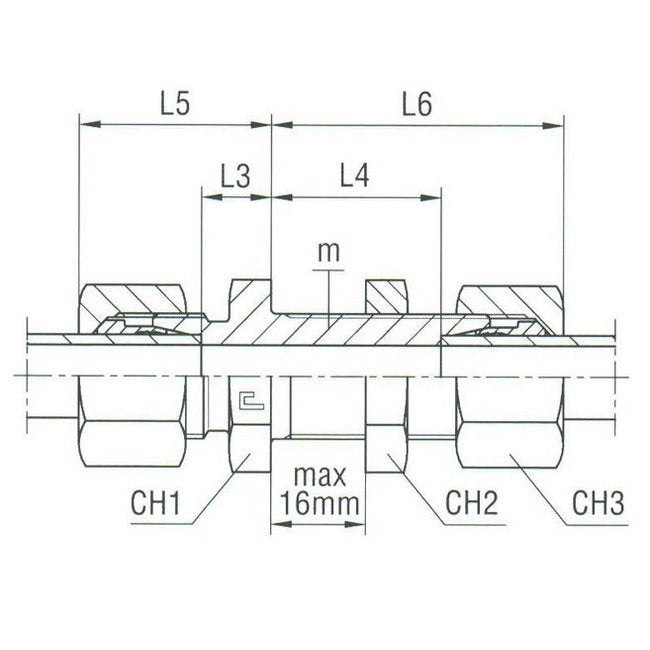

The DIN 2353 Bulkhead Union with Equipped B3 Ring is designed for light-duty applications, constructed from durable carbon steel. With a tube diameter of 10.0mm and a nominal operating pressure of 315 bar, this fitting ensures reliable performance. Meeting DIN 2353 standards, it features precise dimensions including L3: 10mm, L4: 28mm, L5: 25mm, L6: 43mm, CH1: 22mm, CH2: 22mm, and CH3: 19mm, making it ideal for various industrial uses.
Product Specifications
Specifications Ch1
22 mm
Specifications Ch2
22 mm
Specifications Ch3
19 mm
Specifications L3
10 mm
Specifications L4
28 mm
Specifications L5
25 mm
Specifications L6
43 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
16x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
