DIN 2353 Bulkhead Union with Equipped B3 Ring
DIN 2353 Bulkhead Union with Equipped B3 Ring
SKU:FIT-b01eff
Discover the reliable DIN 2353 Bulkhead Union with Equipped B3 Ring for secure and efficient tube connections. Suitable for light duty applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
DIN 2353 Bulkhead Union with Equipped B3 Ring
$29.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Bulkhead Union with Equipped B3 Ring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

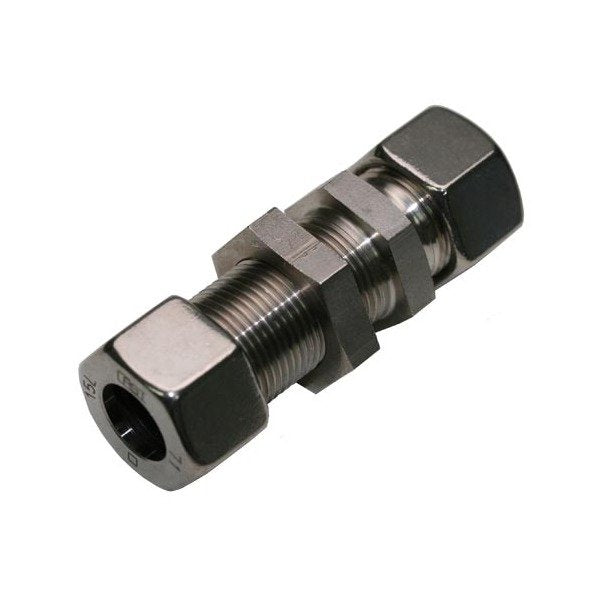

The DIN 2353 Bulkhead Union with Equipped B3 Ring is a durable stainless steel fitting designed for light duty applications. With a tube diameter of 8.0 mm and a nominal operating pressure of 315 bar, this fitting ensures reliable performance in various settings. Meeting DIN 2353 standards, it offers precise and secure connections, making it ideal for both consumer and institutional use.

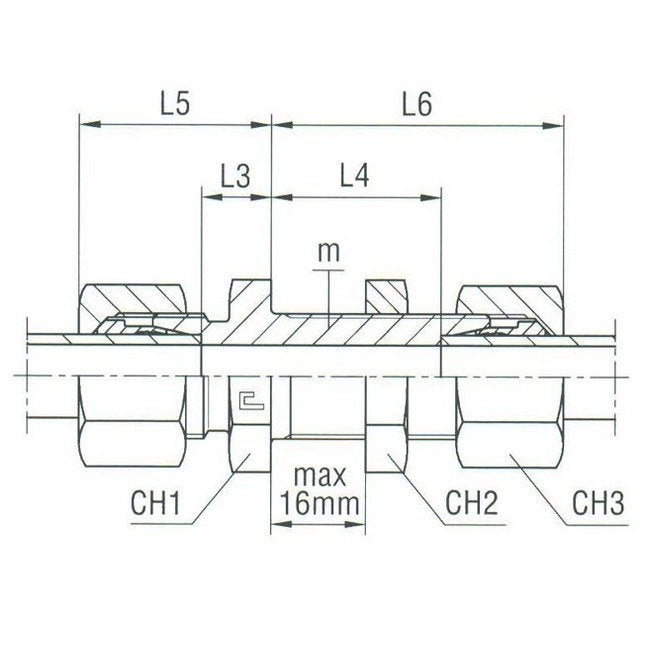

Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
19.0 mm
Specifications Ch3
17 mm
Specifications L3
8.0 mm
Specifications L4
27 mm
Specifications L5
23 mm
Specifications L6
42 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
14x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
8.0 mm
