DIN 2353 Bulkhead Union with Equipped B4 Ring - 12.0mm
DIN 2353 Bulkhead Union with Equipped B4 Ring - 12.0mm
SKU:FIT-2def64
High-quality DIN 2353 Bulkhead Union with Equipped B4 Ring, 12.0mm, for secure and reliable connections in industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
DIN 2353 Bulkhead Union with Equipped B4 Ring - 12.0mm
$29.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Bulkhead Union with Equipped B4 Ring - 12.0mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN 2353 Bulkhead Union with Equipped B4 Ring in 12.0mm features a robust carbon steel construction suitable for light-duty applications. With a nominal operating pressure of 315 bar, this compression fitting ensures secure connections. Meeting DIN 2353 standards, it provides reliable performance, durability, and precise engineering for industrial fluid systems.

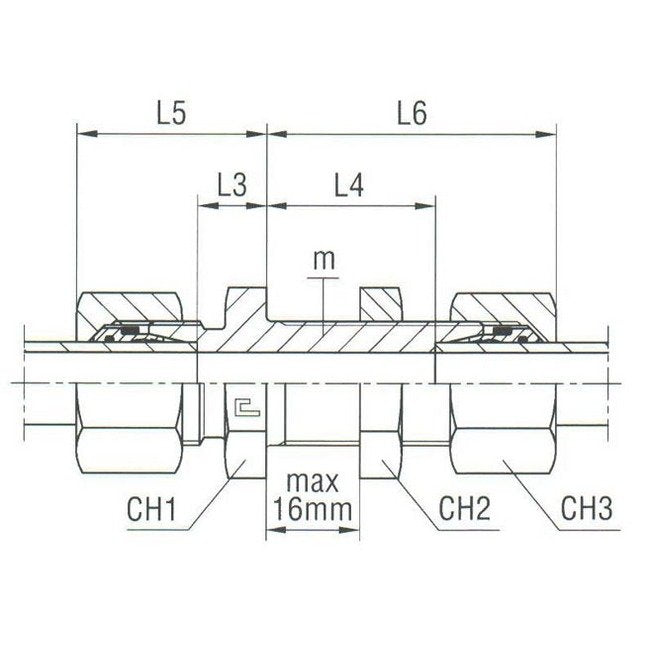

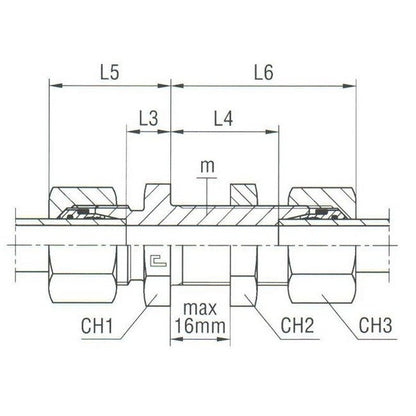

Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
24 mm
Specifications Ch3
22 mm
Specifications L3
10 mm
Specifications L4
29 mm
Specifications L5
25 mm
Specifications L6
44 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
