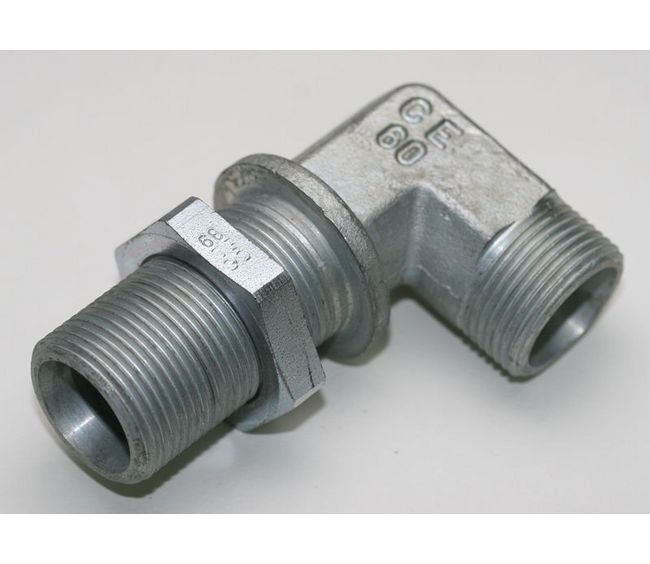

DIN 2353 Carbon Steel Bulkhead Elbow Fitting - Body Only
DIN 2353 Carbon Steel Bulkhead Elbow Fitting - Body Only
SKU:FIT-1d6186
Durable DIN 2353 Carbon Steel Bulkhead Elbow Fitting for institutional use. Pressure Rating: Light Duty. Tube Diameter: 18.0mm. Operating Pressure: 315 bar.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
DIN 2353 Carbon Steel Bulkhead Elbow Fitting - Body Only
$29.99
Quantity: 1
Claim Your Seller Account
DIN 2353 Carbon Steel Bulkhead Elbow Fitting - Body Only
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN 2353 Carbon Steel Bulkhead Elbow Fitting - Body Only is a durable and reliable light-duty fitting designed for institutional use. Crafted from high-quality carbon steel, this fitting ensures optimal performance under pressure. With a tube diameter of 18.0mm and a nominal operating pressure of 315 bar, it meets stringent DIN 2353 standards. Its precise dimensions and sturdy construction make it ideal for various applications where durability and performance are paramount.

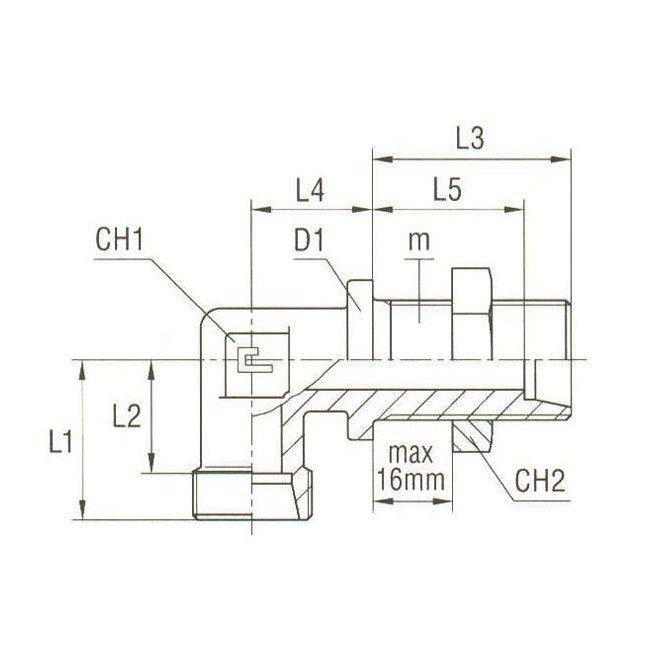

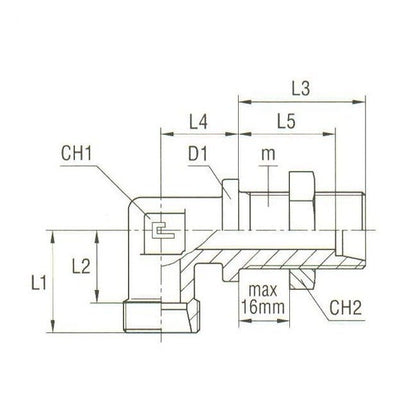

Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
36 mm
Specifications D1
32 mm
Specifications L1
31.0 mm
Specifications L2
23.5 mm
Specifications L3
40 mm
Specifications L4
24 mm
Specifications L5
32.5 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
26x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
18.0 mm
